SimpliBox 485

RS422 / RS485 USB Adaptor

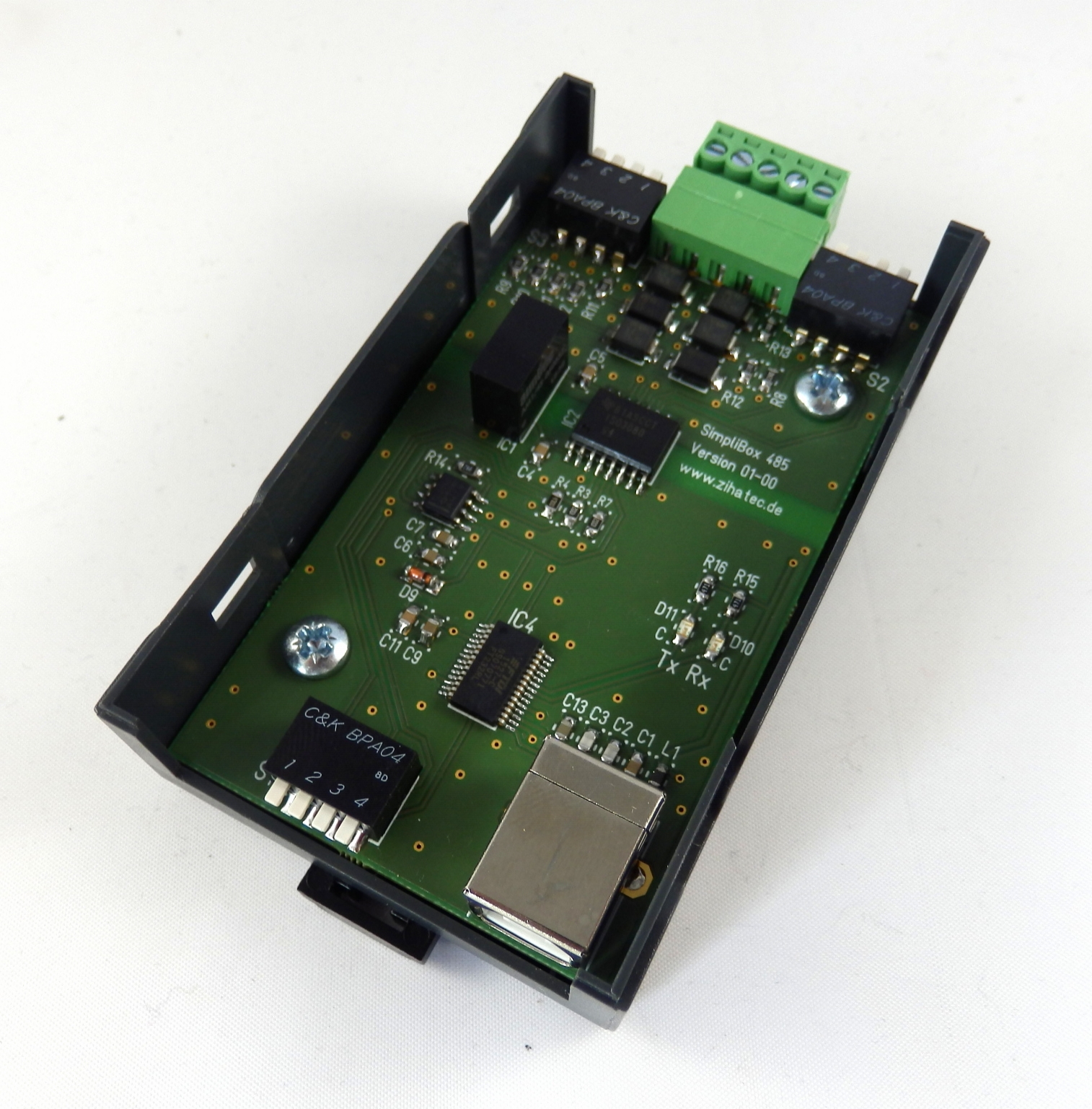

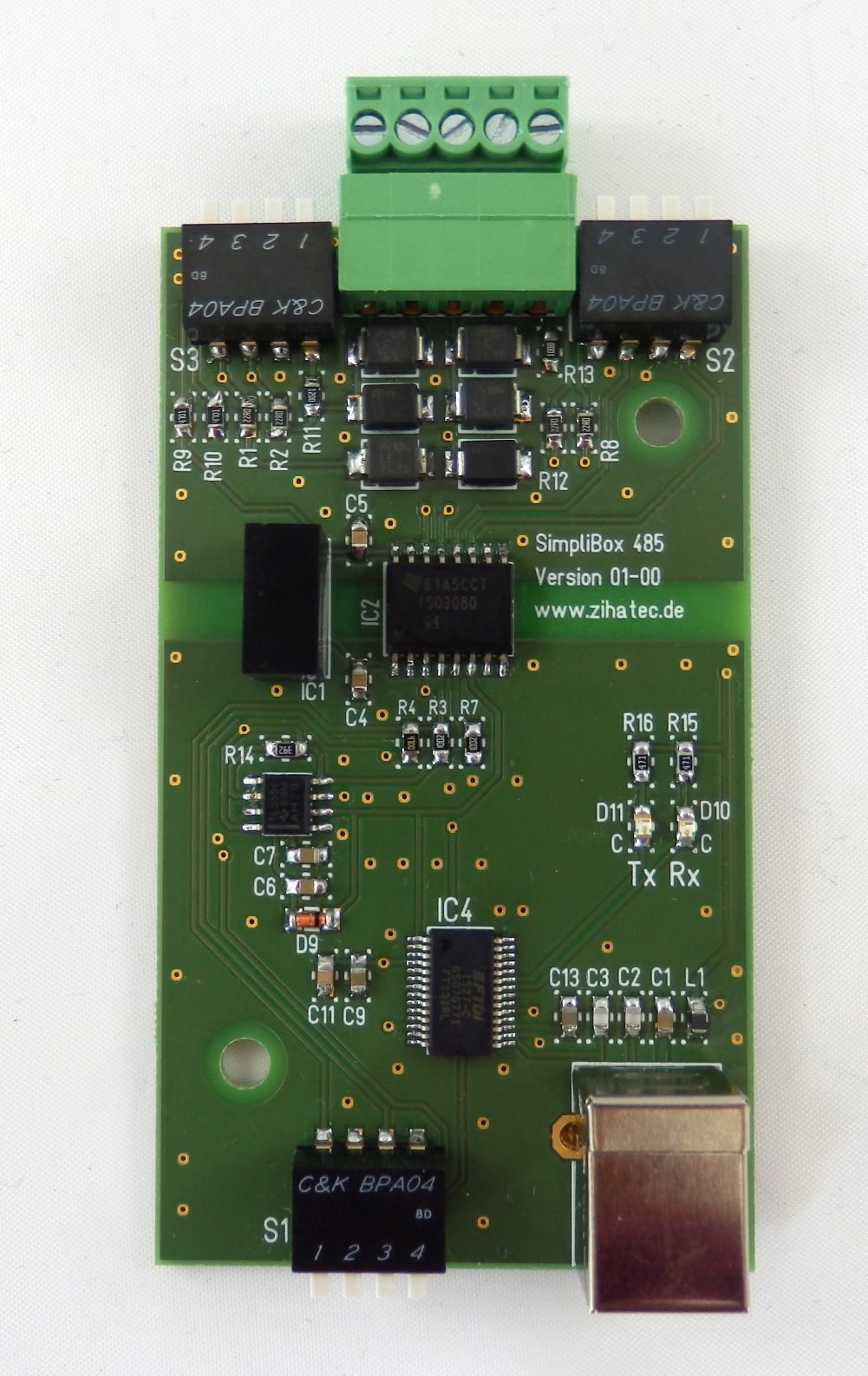

SimpliBox 485 is a RS485 / RS422 to USB bridge module with isolated interface and many more features. An integration into Windows- & Linux based computer systems (for example Raspberry Pi) is very easy, because of the built-in FTDI FT232RL USB controller.


Features overview:

  • RS485 Mode (half duplex)
  • RS422 Mode (full duplex)
  • isolated interface between USB port and connected  RS485 bus
  • enhanced ESD protection
  • adjustable automatic transceiver switching for RS485 mode
  • adjustable control of transceiver/receiver via CBUS4 pin of FT232RL
  • adjustable Pull-Up, Pull-Down und terminating resistors
  • indicator LEDs for RX and TX
  • removable block terminal for bus connection
  • many options adjustable via DIP switches
  • driver is part of the most operation systems
  • No additional power supply needed

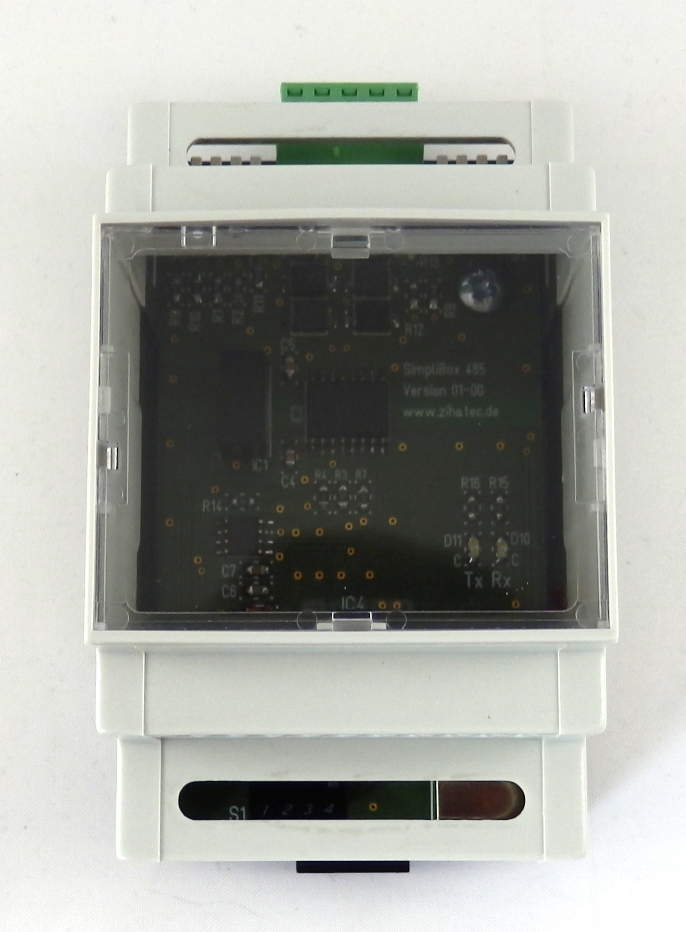

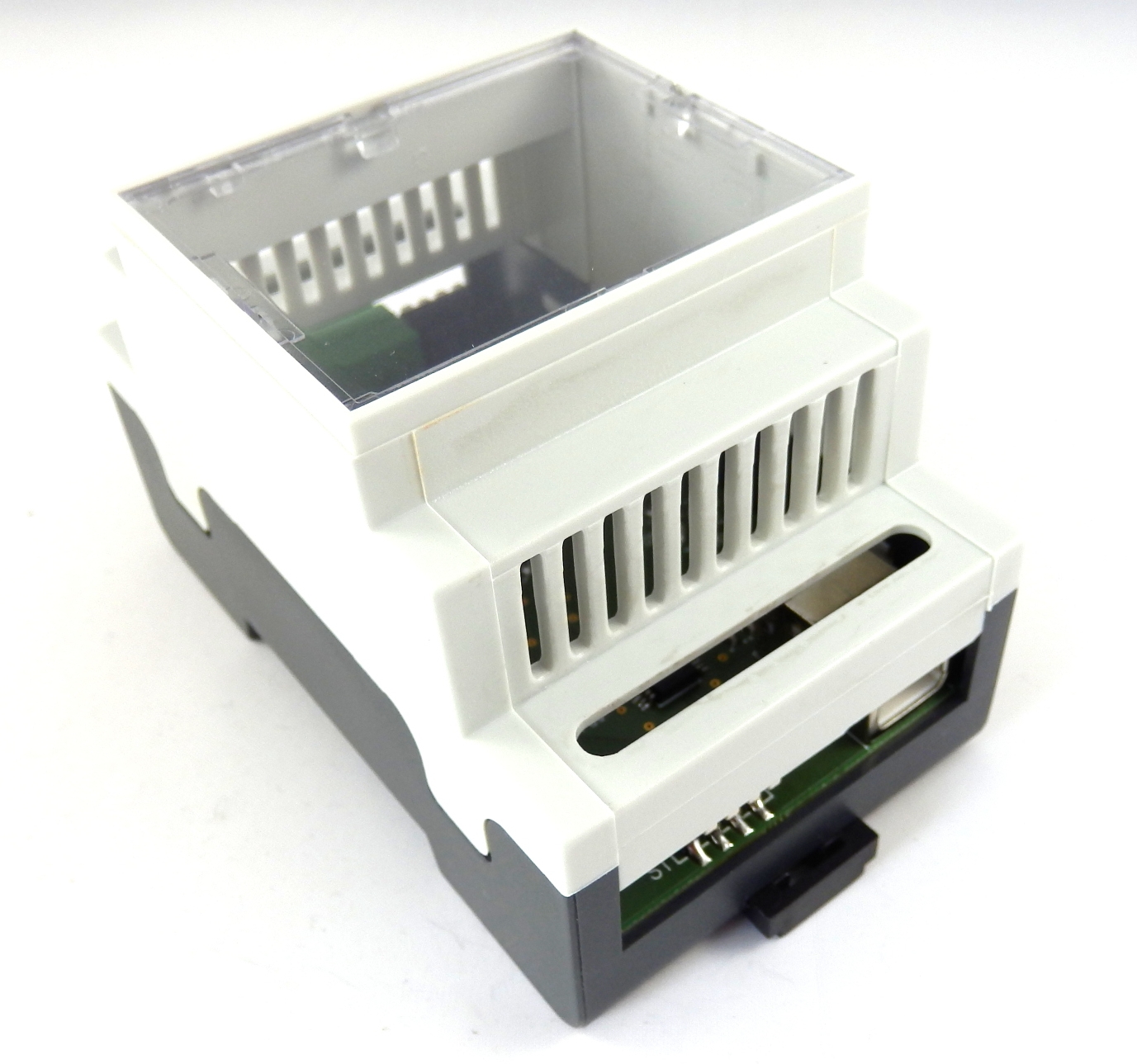

  • Fits perfectely in an optional 3 module cab rail enclosure



Simplibox 485
From 39,99 € 2

You may also like:

RS485 Shield for Arduino
RS485 Shield for Arduino
RS485 Hat for Raspberry Pi
RS485 Hat for Raspberry Pi


Datasheet & Settings for Simplibox 485
Datasheet Simplibox 485 Rev A.pdf
Adobe Acrobat Document 601.1 KB
