Electronic dice with ARM Cortex M0

This small electronic dice based on a NXP ARM Cortex M0 LPC1114/FN28. It was realised in one weekend. The LPC1114/FN28 enables simple prototyping on a breadboard, because this is one of the few ARM Cortex M0 in DIL package.

The software was written in C and with the LPCXpresso IDE.

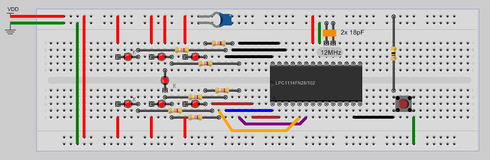

breadboard design
breadboard design
circuit diagram
ARM Cortex Würfel V01-01.pdf
Adobe Acrobat Document 26.0 KB
source code
for LPCXpresso - licenced under GNU GPL V3
Wuerfel.zip
Compressed Archive in ZIP Format 82.6 KB
