EnOcean Unimodule

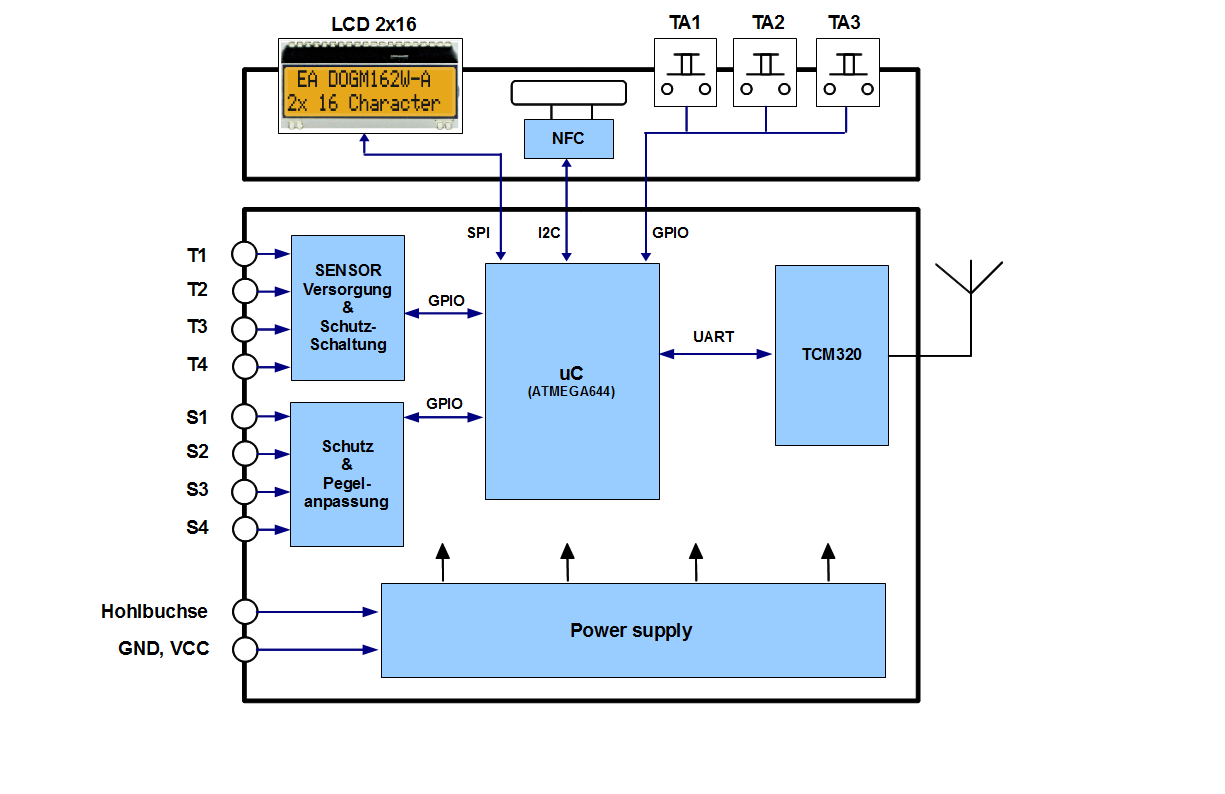

The EnOcean Unimodul measures the temperature of 4 DS18S20 temperature sensors and send the measured temperatures as EnOcean wireless protocols. The Unimodul contains also a thermostat functionality and send wireless control commands if the temperature of a channel will exceed the adjusted limits. Its possible to combine the UniModul with any other EnOcean homeautomation devices like actuators or visualisation software.



Features:

  • read up to 4 digital DS18s20 temperature sensors
  • send the temperature as EnOcean temperature "4BS" protocol
  • 4 independent thermostat functions (send EnOcean control "RPG" protocols
  • 4 binary inputs to connect binary sensors or contacts
  • send EnOcean control "RPG" protocols for every connected binary sensor
  • 2x16 lcd to show the measured temperatures and for configuration
  • 4 buttons for configuration
  • build-in TCM320 module from EnOcean for wireless communication
  • remote control via NFC (in future versions)



Circuit diagram main board
Version 1.0
EnOcean Unimodul Main V01-00.pdf
Adobe Acrobat Document 84.2 KB
Circuit diagram display board
Version 1.0
EnOcean Unimodul LCD V01-00.pdf
Adobe Acrobat Document 27.0 KB
Firmware 1.1 build 2013-04-04
Hex and sourcecode
Unimodul V1.1.zip
Compressed Archive in ZIP Format 47.5 KB
