Arduino paraffin oil / water dot matrix display

 This was a demo project for the Maker Faire Hannover 2016. The project was inspired by the work of the artist Julius Popp.

We are using a transparent hose, 2 peristaltic pumps and an Arduino Uno with motor shield to build a simple display.

The pumps pressing a pattern of water and red paraffin oil in the hose. In the end a text will be visible.

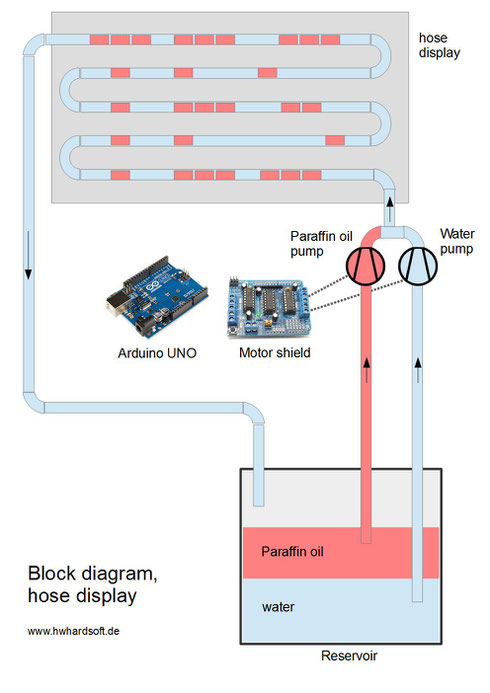

bit.fall bit.flow block diagram arduino
Blockdiagramm Schlauchdisplay


The Arduino UNO can control both peristaltic pumps via a motor shield. Everything of the control unit is mounted in our Arduibox-enclosure.

source code
Arduino project file
Compressed Archive in ZIP Format 2.8 KB
