ArduiBox ESP

DIN rail enclosure set for ESP32 and ESP8266

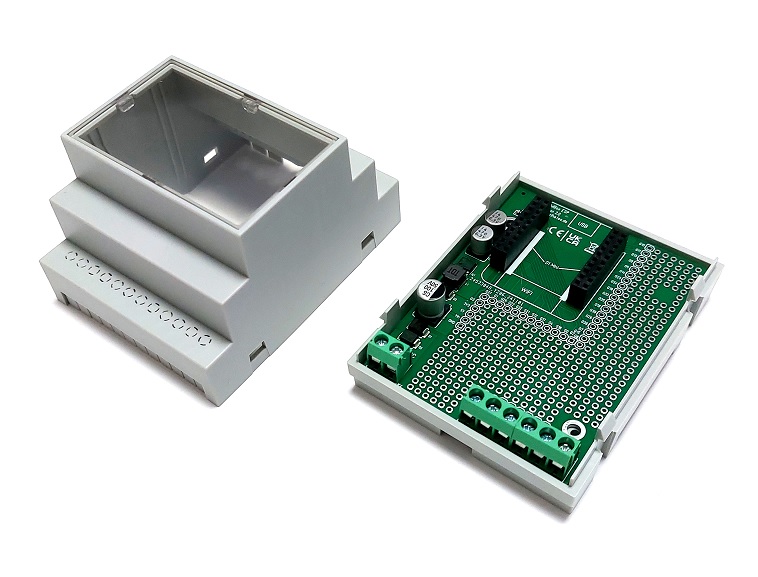

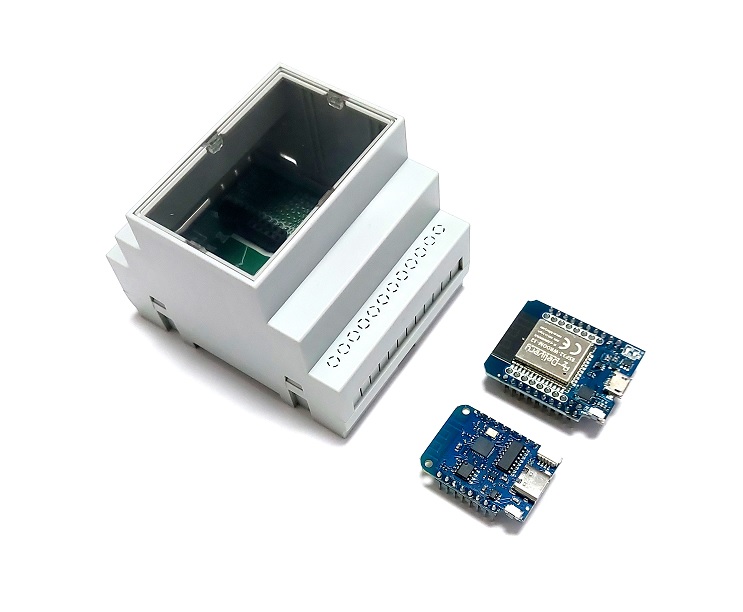

ArduiBox ESP is an enclosure set for ESP8266 (AZ-Delivery D1 Mini) or ESP32 (AZ-Delivery ESP32 DEV KIT C). The heart is an additional pcb with integrated voltage regulator and breadboard. It fits together with the ESP module in a 4 module DIN rail enclosure.

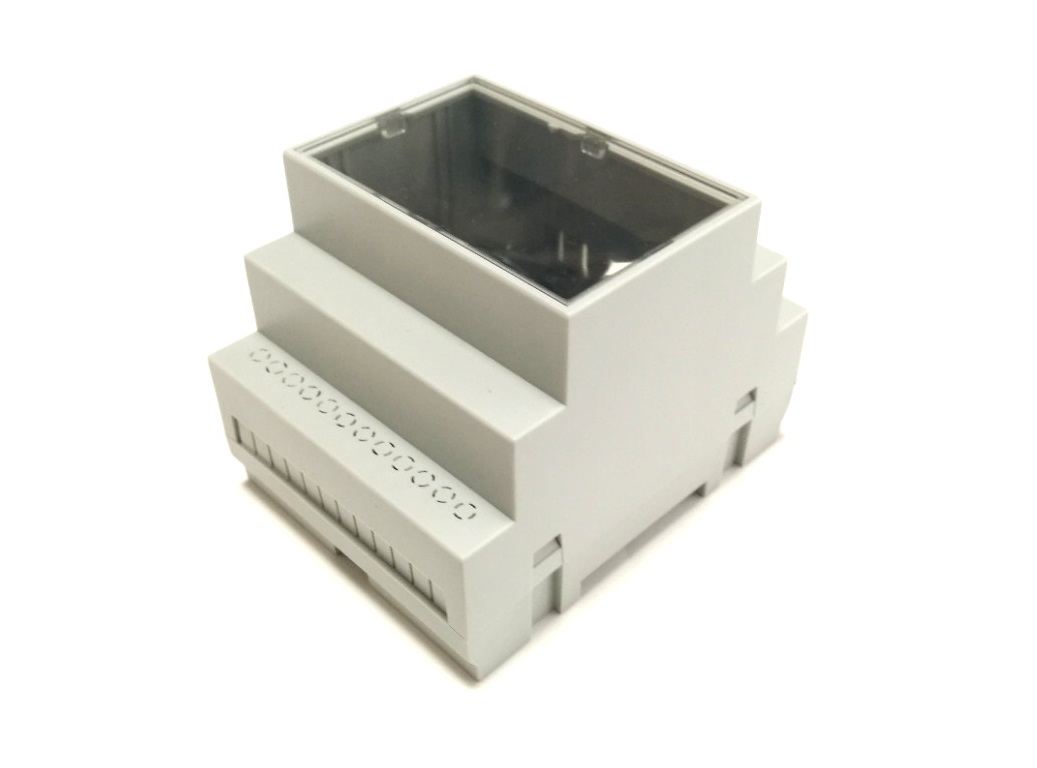

  • milled 4 module DIN rail enclosure

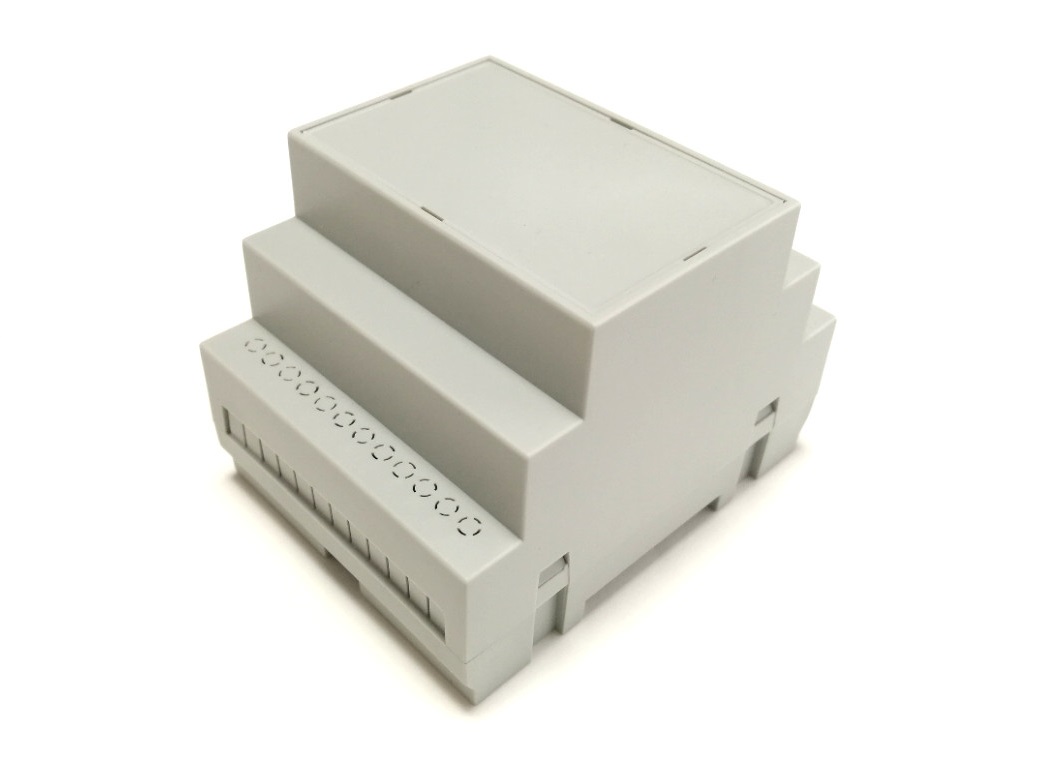

  • top shell with grey or transparent cover

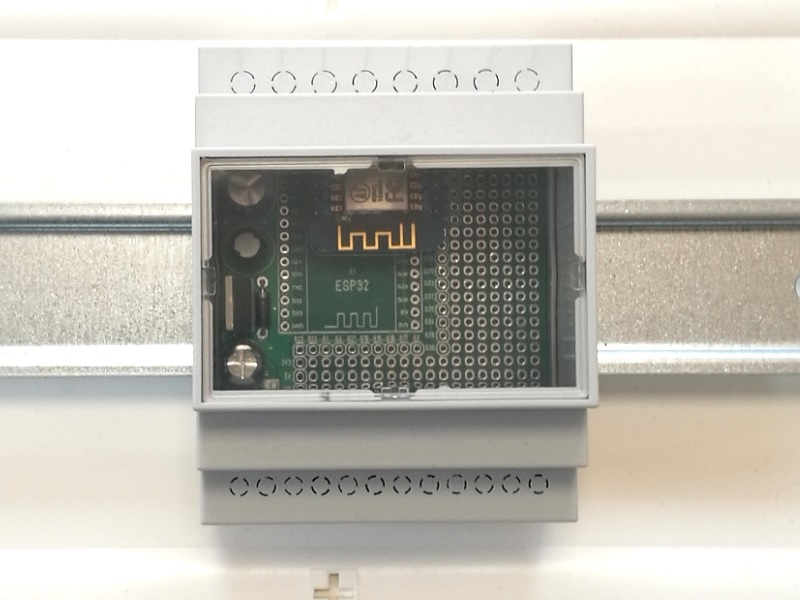

  • for EN50022 DIN rails

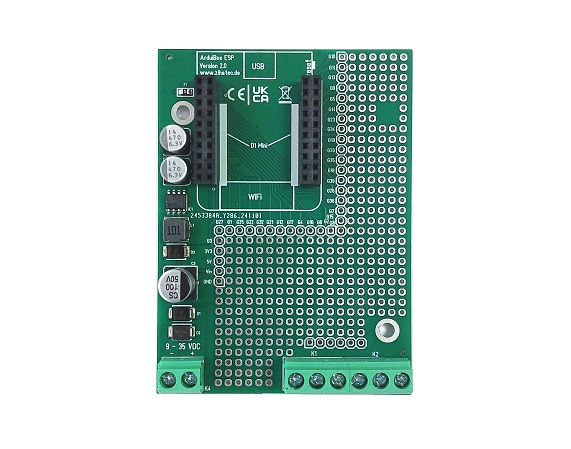

  • pcb with 2x 20pole female pin header to plug the ESP module
  • optional integrated voltage regulator (input voltage 9..35V via 2 way terminal block)
  • breadboard / proto board for own circuits
  • all GPIO pins are marked and placed beside the breadboard area
  • 3x 2 way terminal blocks to connect external components to the breadboard
  • removable protections for terminals
  • Opening for modules USB port on top side
  • for  ESP8266 (AZ Delivery D1 Mini) or ESP32 (AZ Delivery DEV KIT C) only


We offer the  ArduiBox ESP kits in 2 different versions:

  •  Version Basic: without the parts of the voltage regulator. (You can order these parts seperately form any electronic distributor ...)
  • Version Standard: includes parts für a 5V/1.7A voltage regulator and USB-A socket






ArduiBox ESP
From 5,99 € 2


Current Version 1.x:

Datasheet Arduibox ESP (EN)
Version 1.x / 2020-02-02
Datasheet ArduiBox ESP Rev A.pdf
Adobe Acrobat Document 1.1 MB
Assembly Instruction ArduiBox ESP (EN)
Version Rev B / 2020-02-05
Assembly Instruction ArduiBox ESP rev B.
Adobe Acrobat Document 5.1 MB
Schematic ArduiBox ESP
ArduiBox ESP Schematic V01-01.pdf
Adobe Acrobat Document 205.0 KB

Old Version (ArduiBox NodeMCU):

Datasheet Arduibox NodeMCU (EN)
Datasheet Arduibox NodeMCU Rev A.pdf
Adobe Acrobat Document 265.3 KB
Assembly Instruction ArduiBox NodeMCU (EN)
Assembly Instruction ArduiBox NodeMCU re
Adobe Acrobat Document 1.0 MB
Assembly Instruction for Display Shield (EN)
Display Shield and ArduiBox NodeMCU rev
Adobe Acrobat Document 879.9 KB
