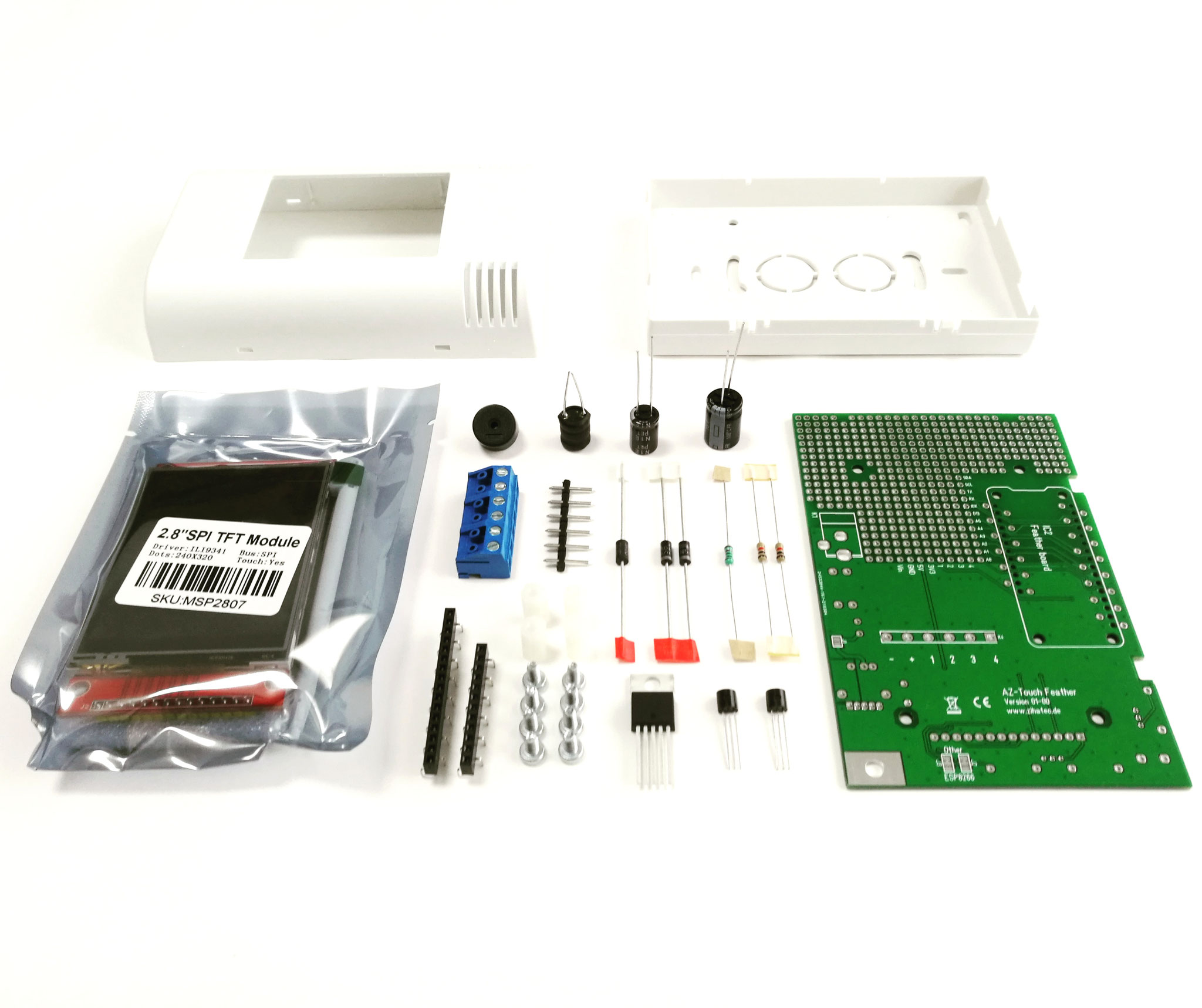

AZ-Touch Feather

top wall mounting touchscreen set for Feather style boards



AZ-Touch Feather is a wall housing set with an integrated touch screen for the well-known Feather Style microcontroller boards from various manufacturers, e.g. Huzzah boards from Adafruit or the Thing Plus boards from Sparkfun. Based on the Feather Standard, different microcontroller boards are available for different platforms e.g. ESP32, ESP8266, SAMD51, Cortex M0, RP2040 etc.
The combination of these boards with the AZ-Touch enables new applications in the field of home automation, metering, monitoring, control and other typical IoT applications.

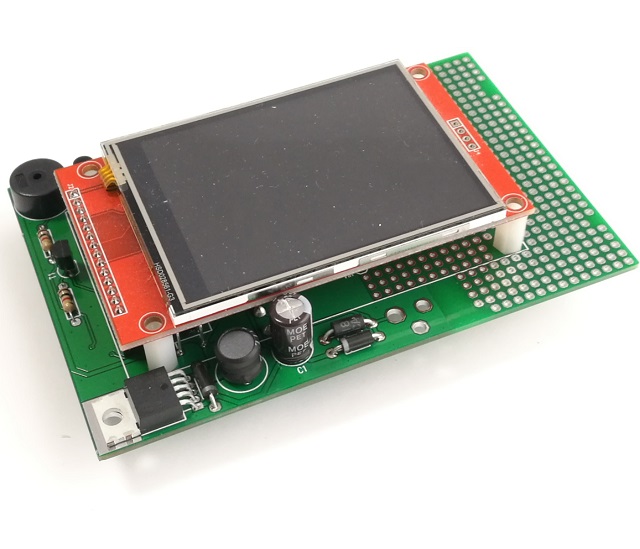

Touchscreen

2.8 inch touchscreen with integrated  ILI9341 display controller, communication via SPI. Touch controller Type XPT2046 and resitive touch.


Compatibility

AZ-Touch Feather can be used together with microcontroller board which following the Adafruit feather standard for example


Verical and Horizontal Mounting

Depending from your project and your software you can mount the enclosure set vertical or horizontal directely on the wall or in front of a flush wall mount box.

ESP32 ESP8266 Nodemcu touch ILI9341 homeautomation
ESP32 ESP8266 Nodemcu touch ILI9341 weather station

Easy Installation

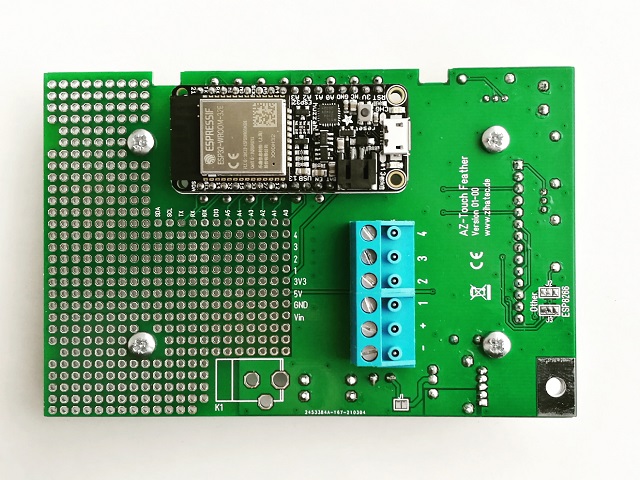

A removable terminal block makes installion easier. The pcbs are mounted on the enclosure allowing a rapid substitution of the devices when needed and facilitating the assembling/ disassembling of the enclosure.


Power Supply

The AZ-Touch pcb come with an integrated switching regulator for voltages from 9 to 35V DC. You can connect the power supply via the terminal or an optional DC socket.


Acoustics

The integrated piezo beeper (resonance frequency 4kHz)  can be used to generate acoustic feedback, acknowldge tones or melodies.

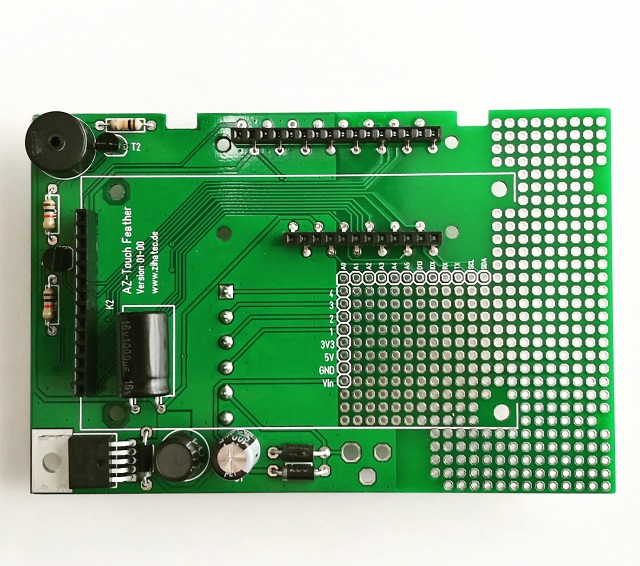

Breadboard

A small breadboard area in the top of the pcb can be used for own extensions. 4 poles of the terminal are connected together with some GPIOs and the voltages with solder joints beside the breadboard.


Webstore

AZ-Touch Feather
From 7,99 € 2

This kit is also available at ThePiHut.com

Downloads

Datasheet AZ-Touch Feather Rev A
Datasheet AZ-Touch Feather Rev A.pdf
Adobe Acrobat Document 933.6 KB
Assembly Instruction AZ-Touch Feather
Rev A
Assembly Instruction AZ-Touch Feather re
Adobe Acrobat Document 7.0 MB
Schematic AZ-Touch Feather
AZ-Touch Feather Schematic V01-01.pdf
Adobe Acrobat Document 207.4 KB

Application Examples:

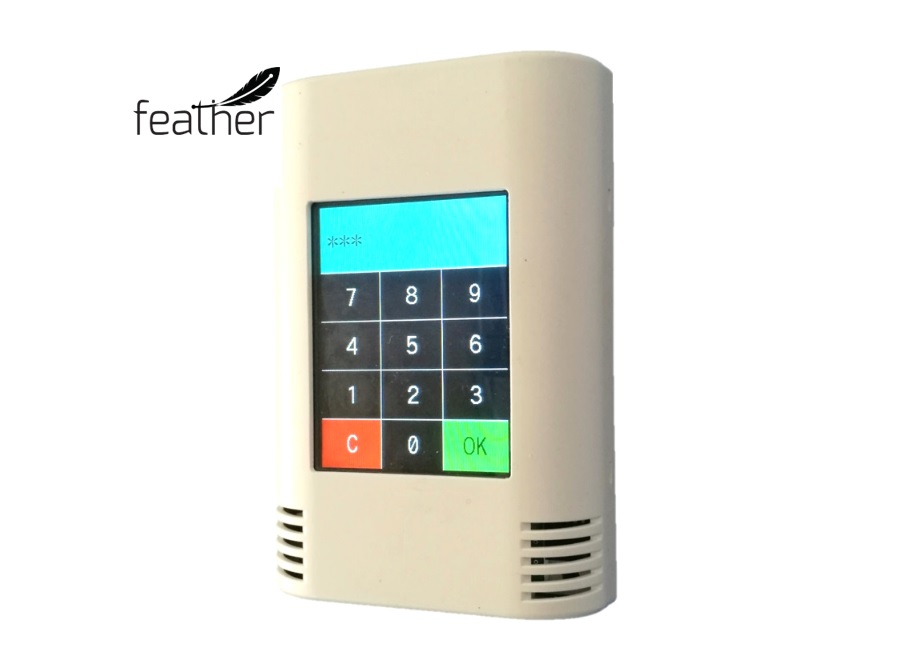

Codelock

code lock keypad tastatur

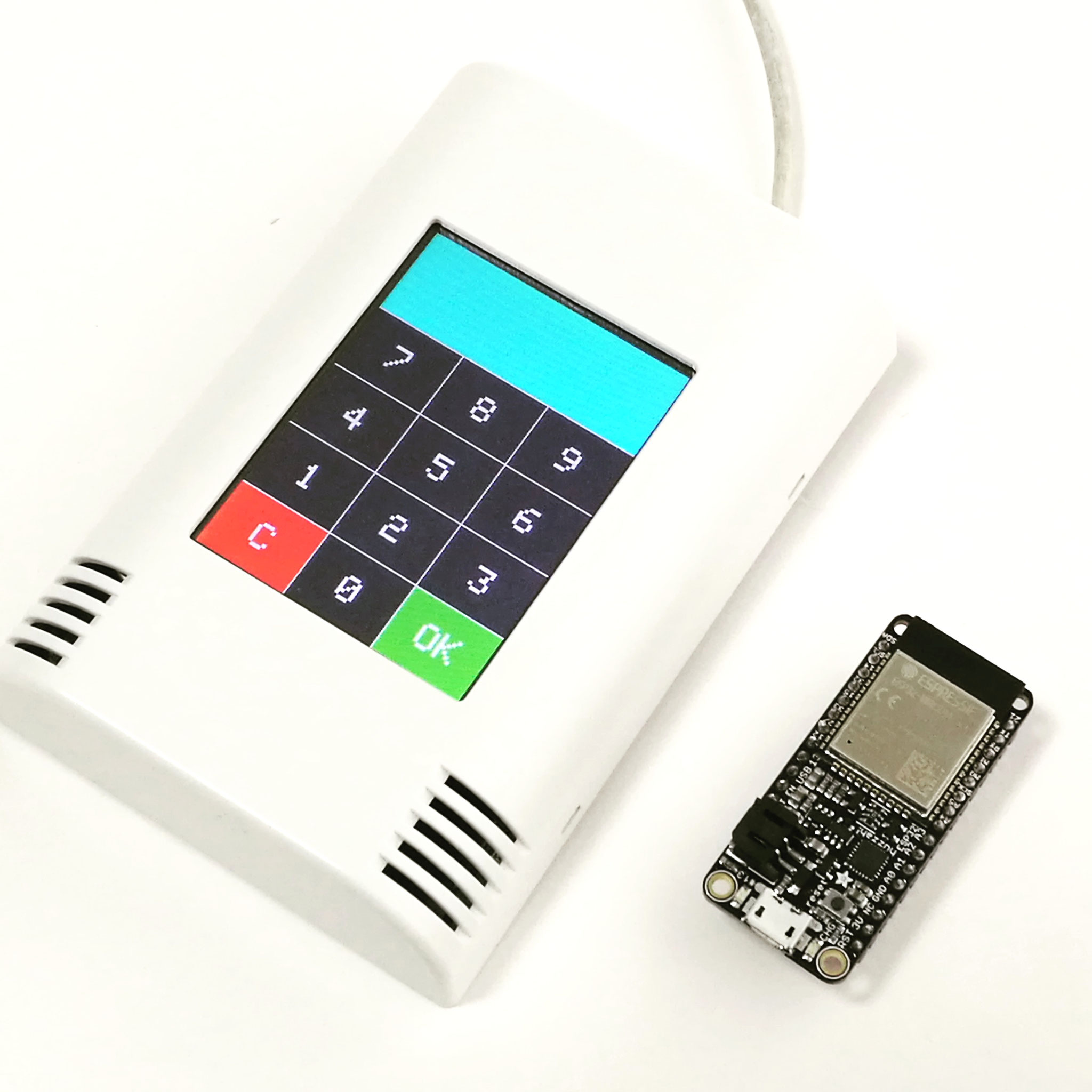

Code lock example

Code lock / key pad example project. Can be configured for the following feather boards:

  • HUZZAH32
  • HUZZAH8266
  • Feather M0
  • Thingplus RP2040



Source Code

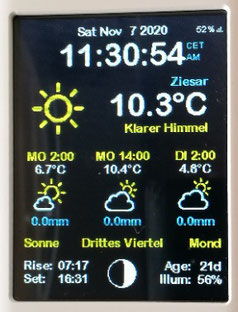

Weather Forecast

ESP32 ESP8266 Nodemcu touch ILI9341 weather station
Weather Station

Weather forecast based on OpenWeatherMap for ESP32 and ESP8266 based feather boards:

  • HUZZAH32
  • HUZZAH8266
  • Thingplus ESP32 WROOM



Source Code ESP32
