RasPiBox Pico

din rail enclosure set for Raspberry Pi Pico

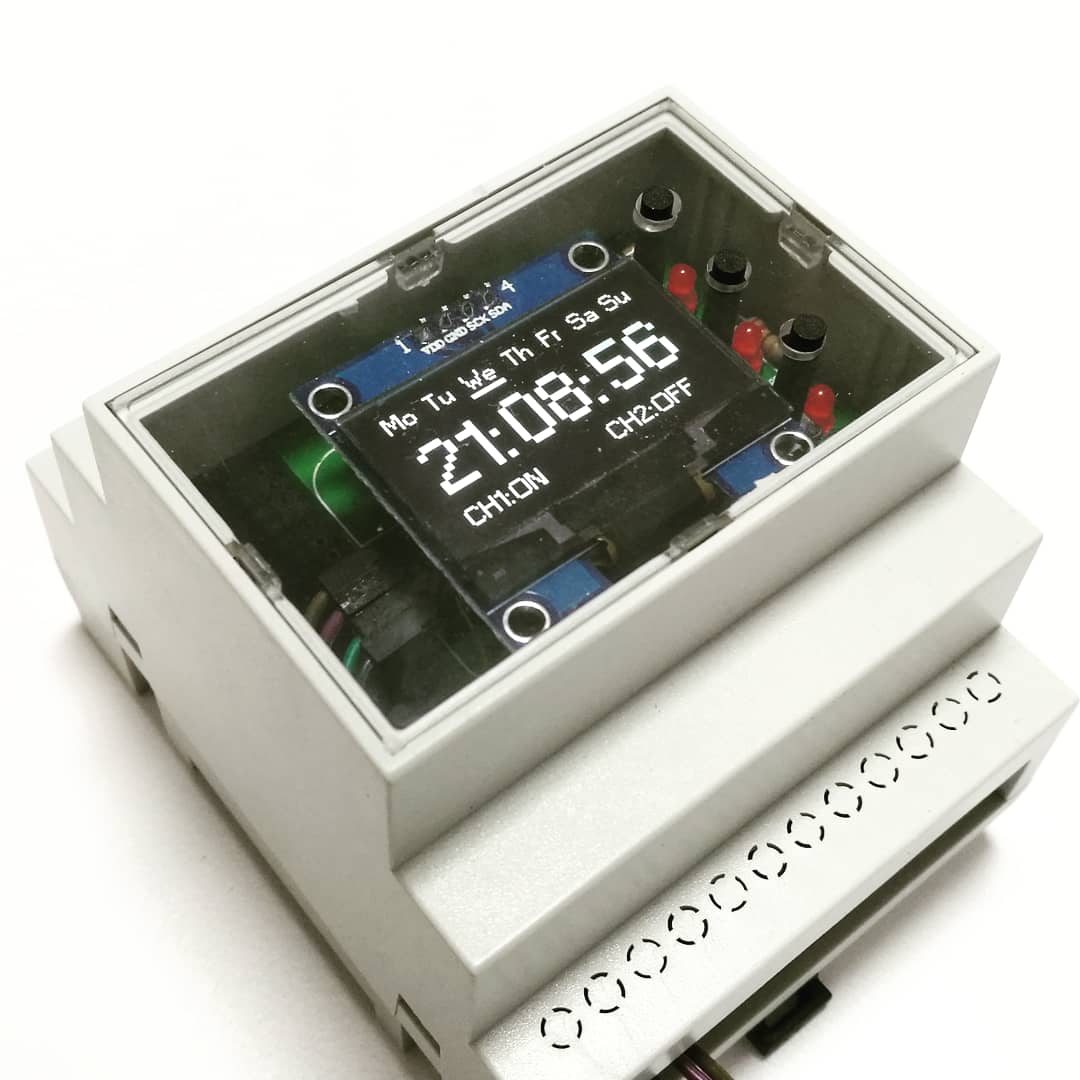

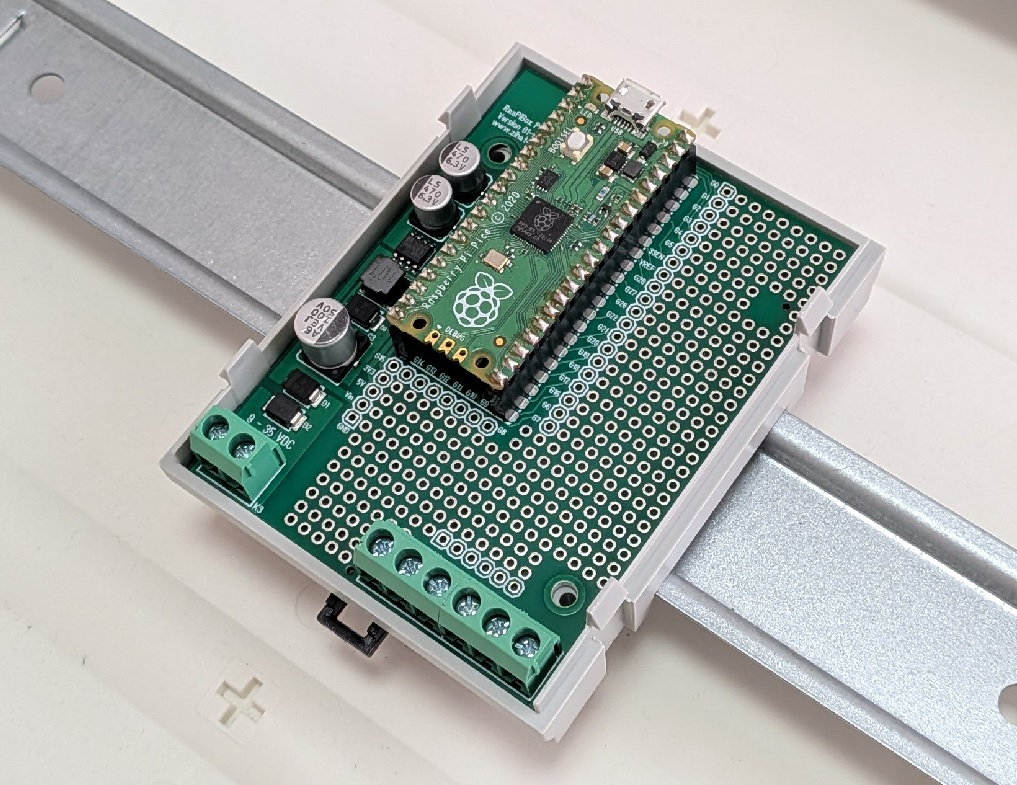

RasPiBox Pico is an enclosure set for the new Raspberry Pi Pico microcontroller board by the Raspberry Pi Foundation. The heart is an additional pcb with integrated voltage regulator and breadboard. It fits together with the Raspberry Pi Pico in a 4 module DIN rail enclosure.



Overview:

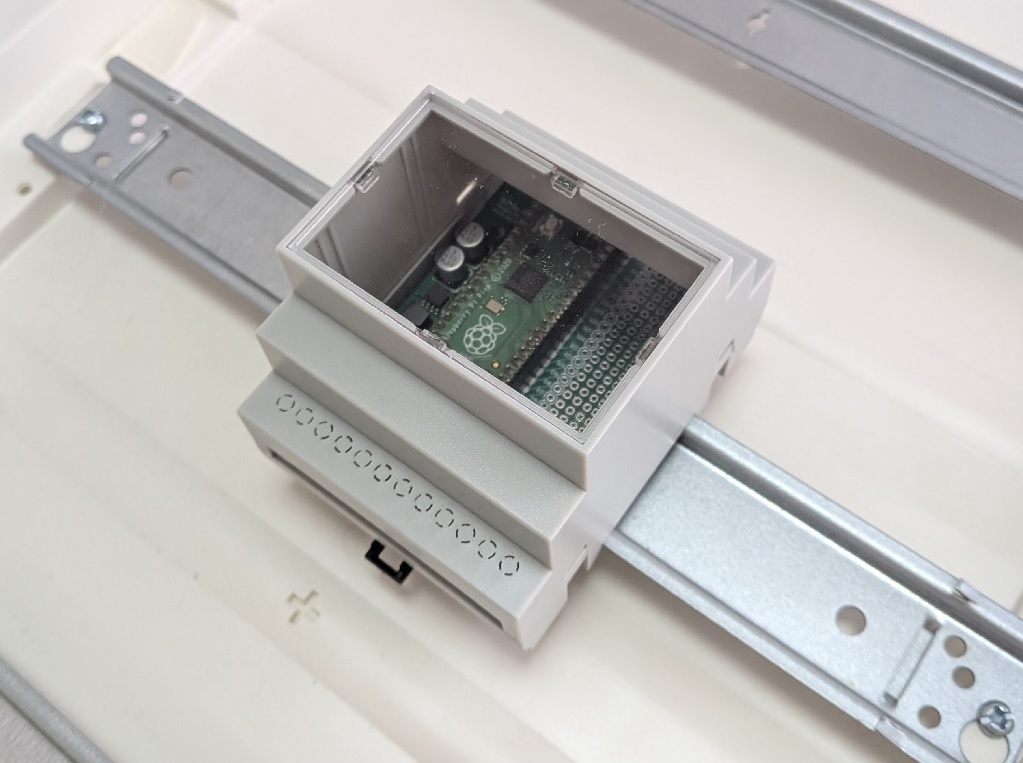

  • milled 4 module DIN rail enclosure

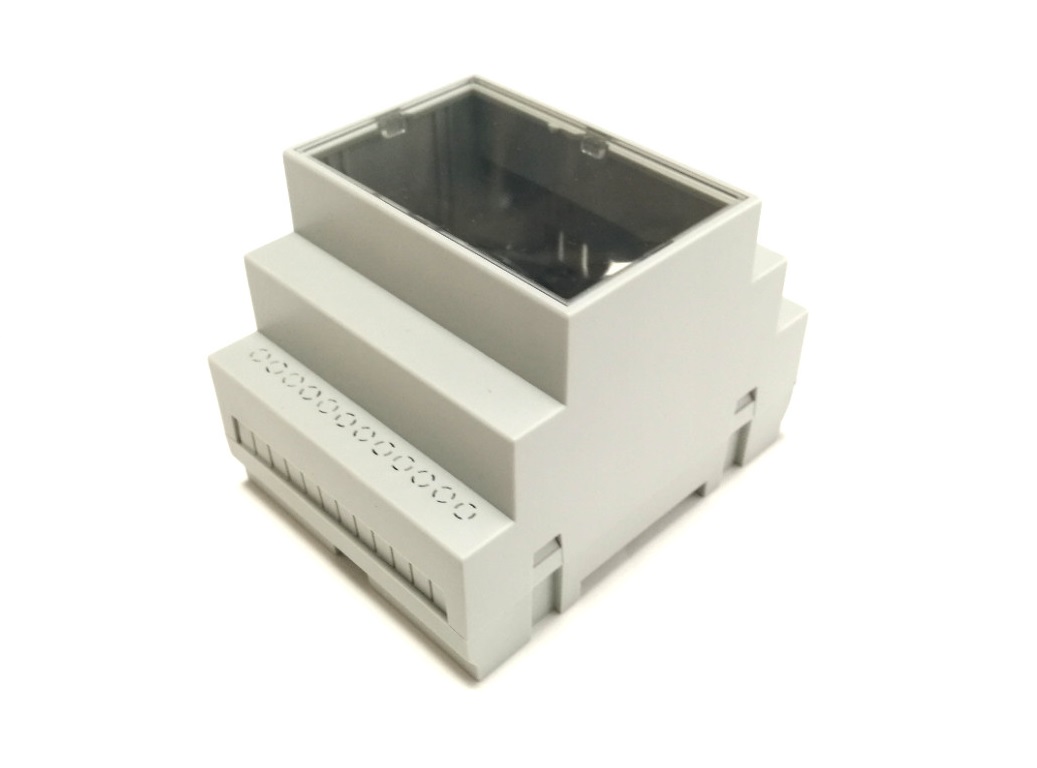

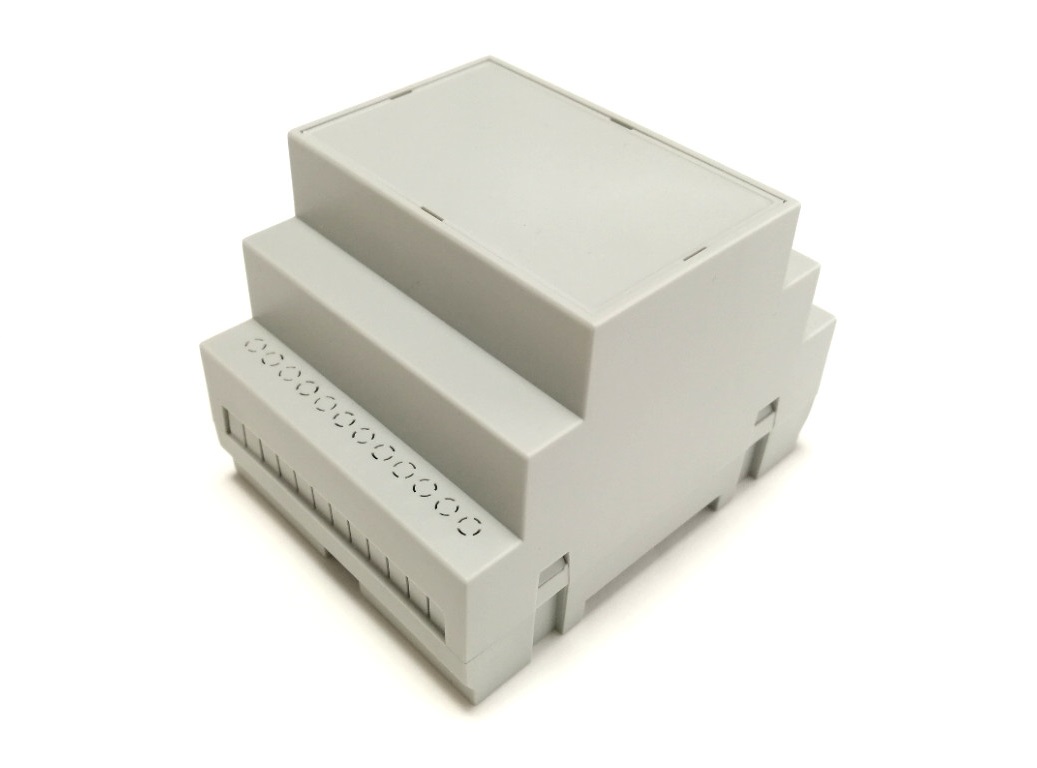

  • top shell with grey or transparent cover
  • for EN50022 DIN rails

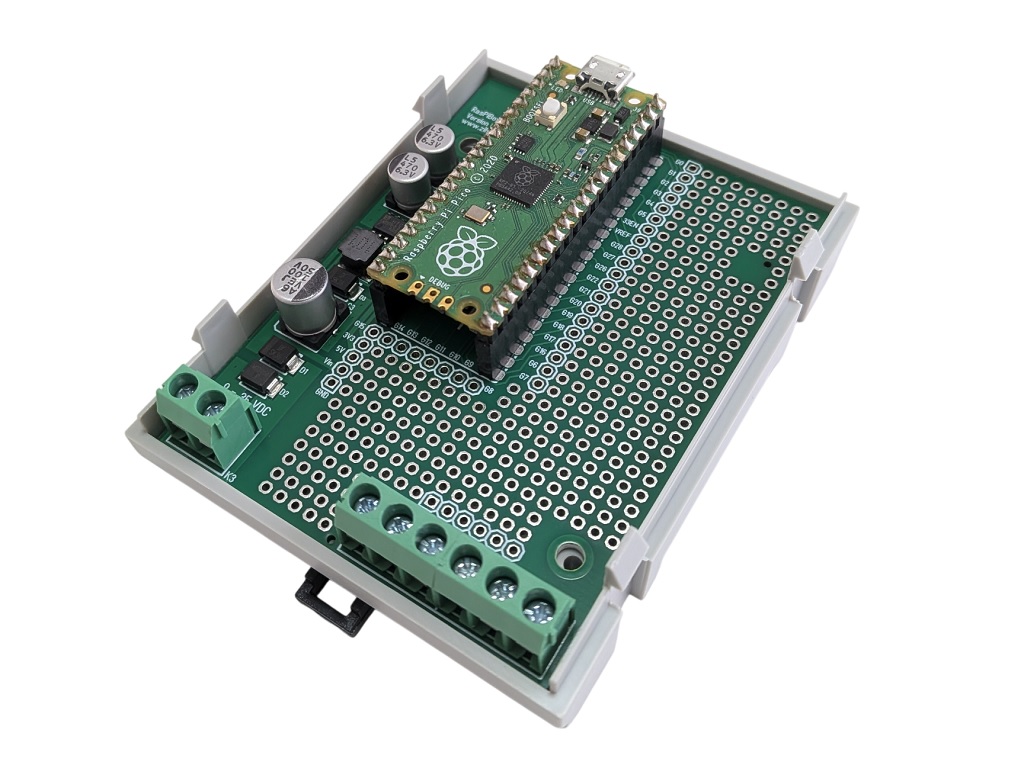

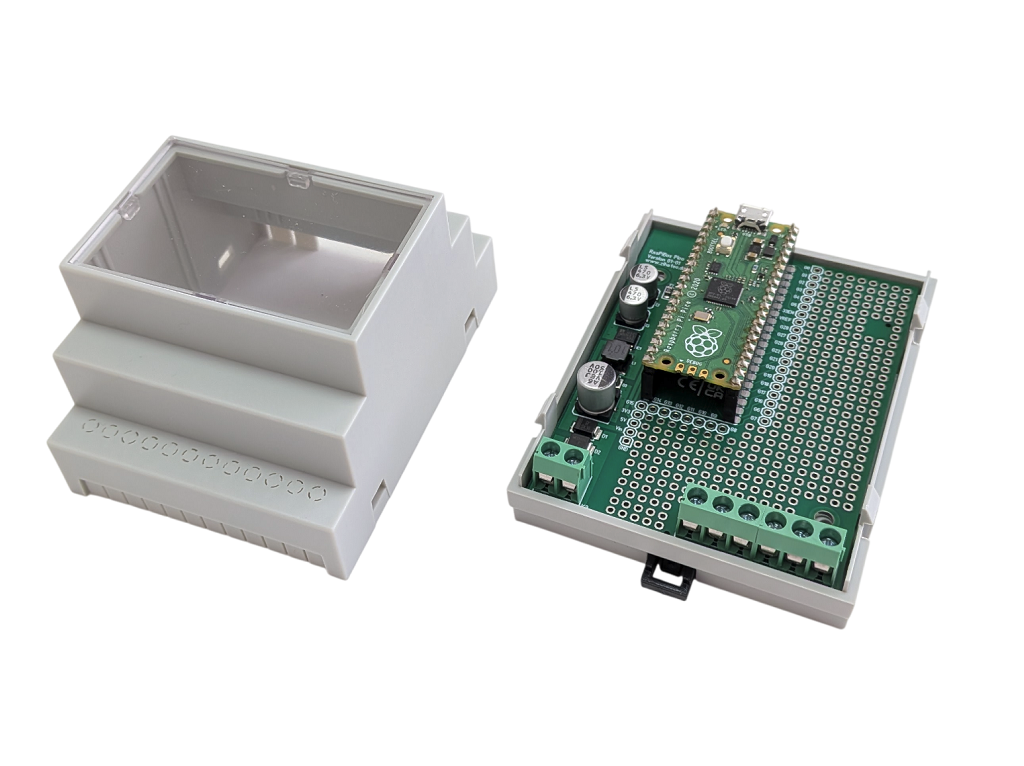

  • pcb with 2x 20pole female pin headers to plug a Raspberry Pi Pico

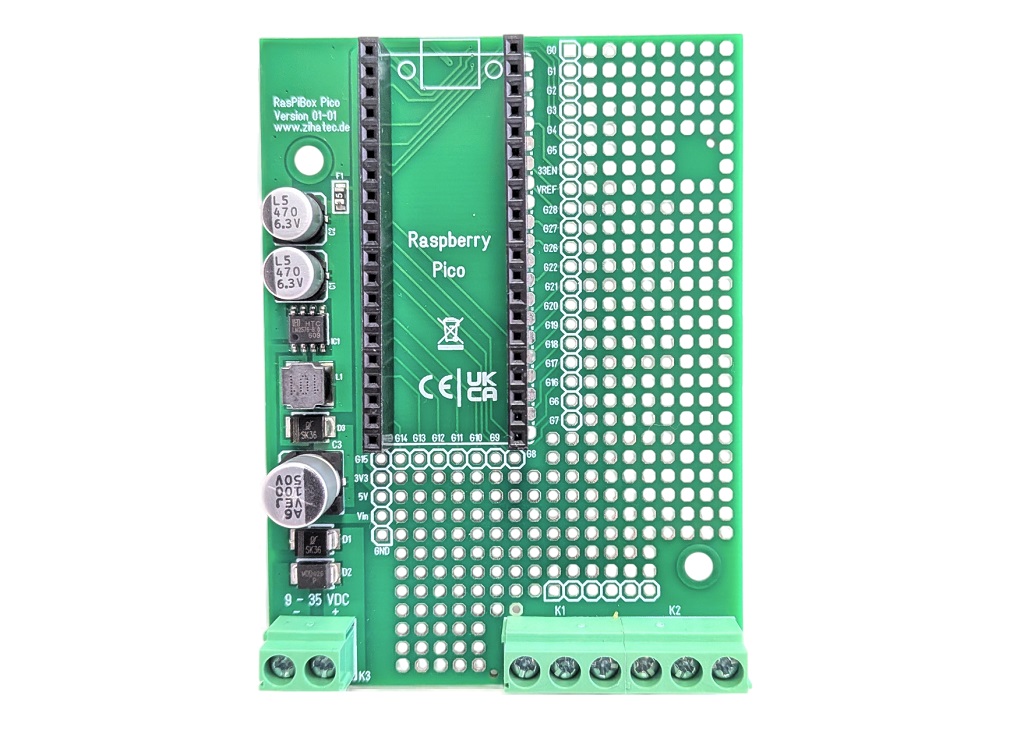

  • optional integrated voltage regulator (input voltage 9..35V via 2 way terminal block)
  • breadboard / proto board for own circuits
  • all GPIO pins are marked and placed beside the breadboard area
  • 3x 2 way terminal blocks to connect external components to the breadboard
  • removable protections for terminals

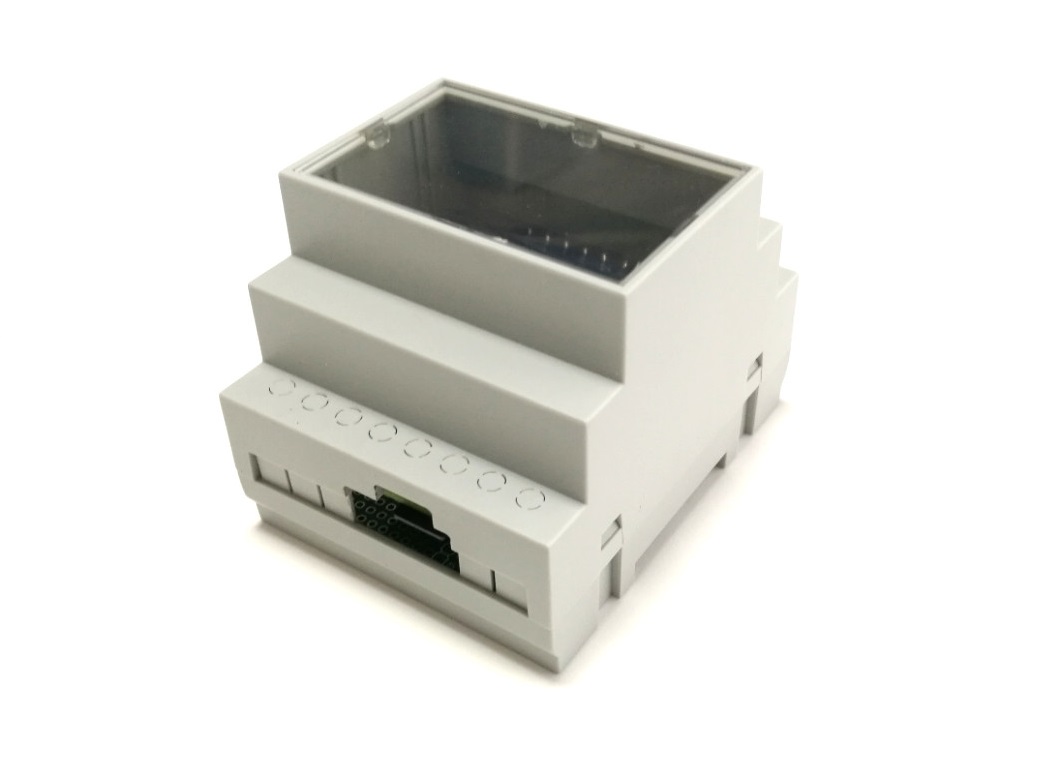

  • Opening for Micro USB socket of the Pico on top side
  • for Raspberry Pi Pico only



We offer the  Raspibox Pico kits in 2 different versions:

  •  Version Basic: without the parts of the voltage regulator. (You can order these parts seperately form any electronic distributor ...)
  • Version Standard: includes parts für a 5V/1.7A voltage regulator
