From Zero To Hero

RasPiBox Zero Lite for Raspberry Pi Zero (W)

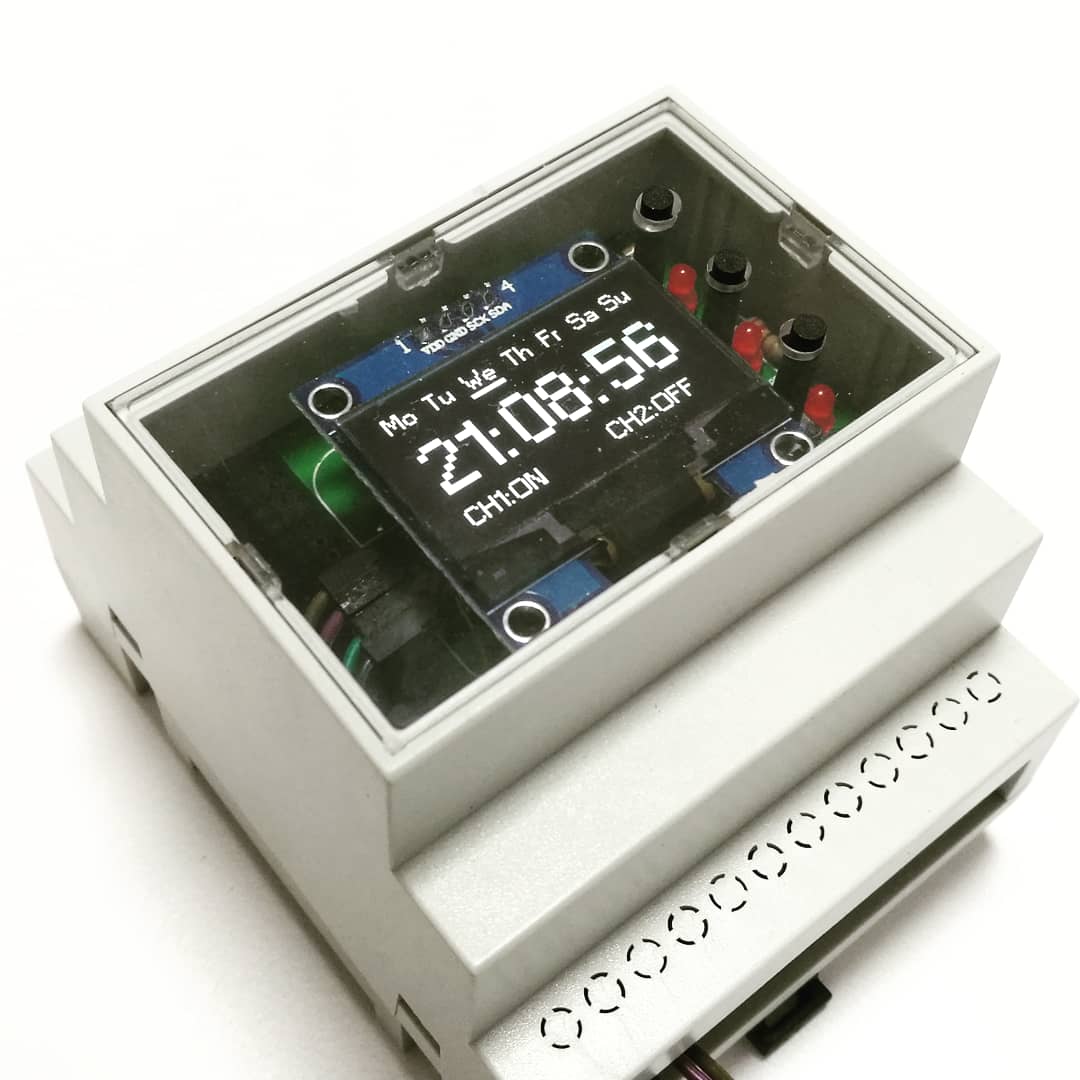

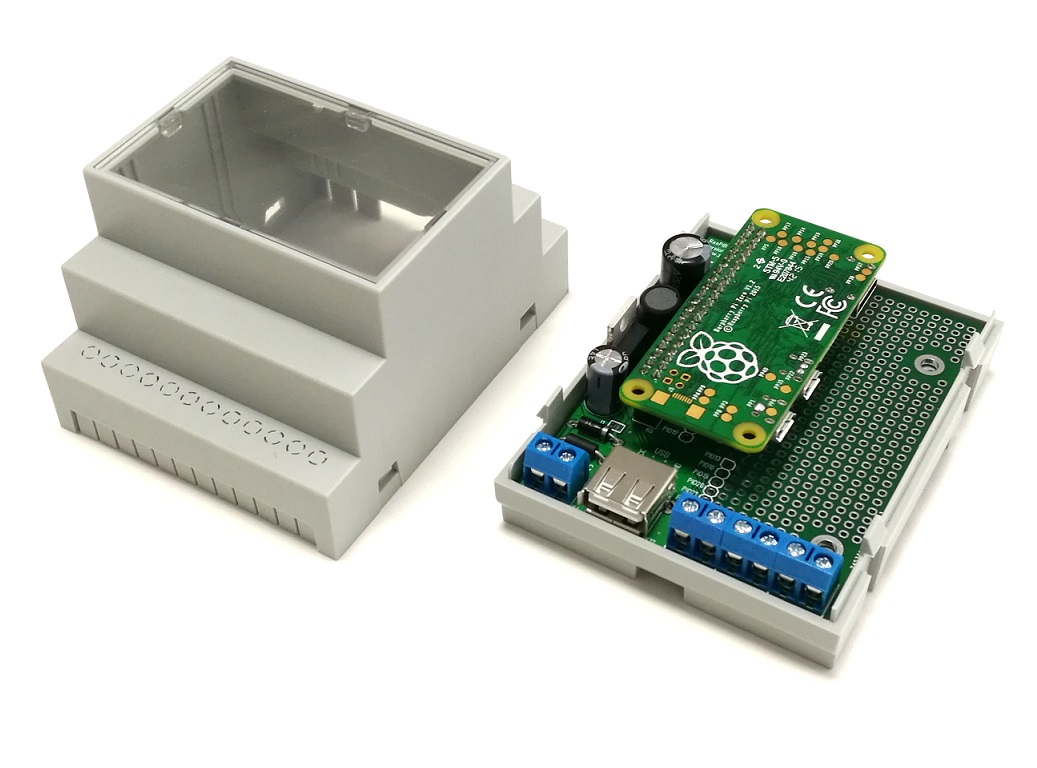

RasPiBox Zero is an enclosure set for the Raspberry Pi Zero. The heart is an additional pcb with integrated voltage regulator and breadboard. It fits together with the PiZero in a 4 module DIN rail enclosure.



Overview:

  • milled 4 module DIN rail enclosure

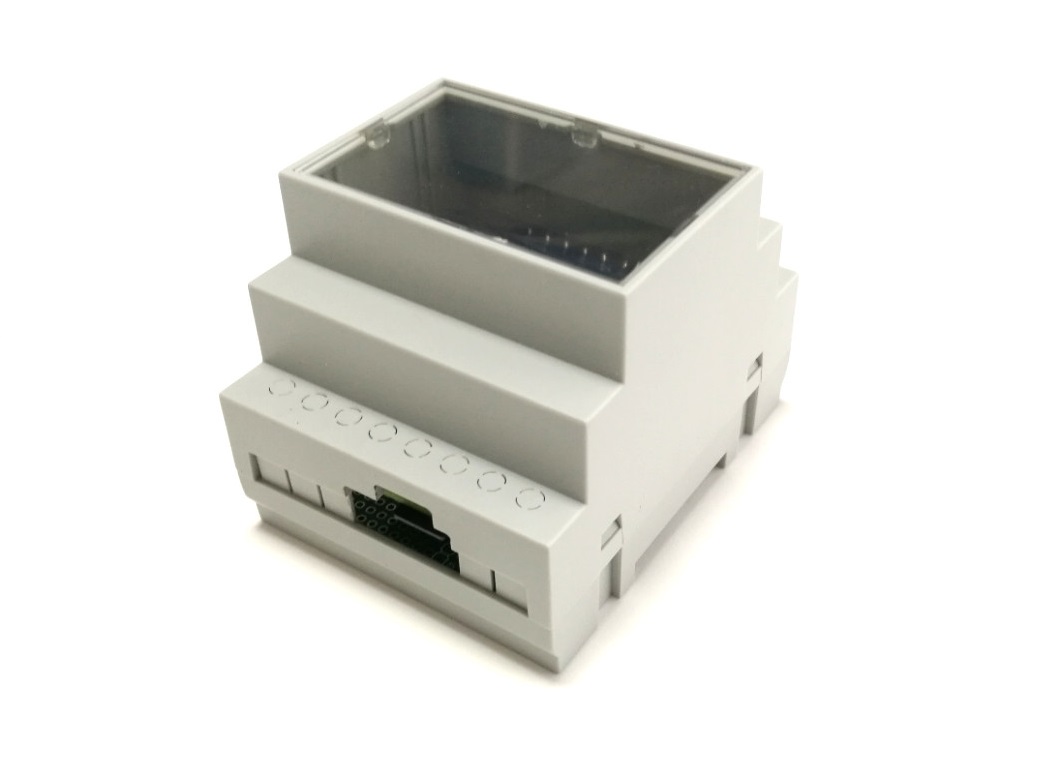

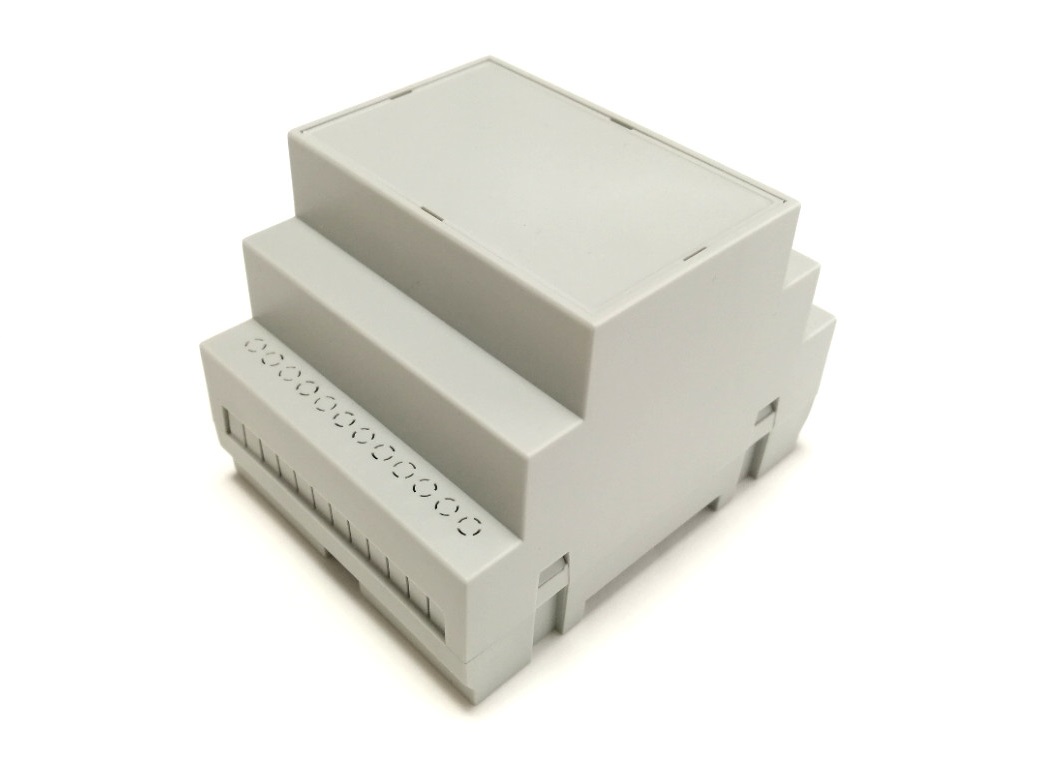

  • top shell with grey or transparent cover
  • for EN50022 DIN rails
  • pcb with 40pole female pin header to plug a Raspberry Pi Zero
  • optional integrated voltage regulator (input voltage 9..35V via 2 way terminal block)
  • breadboard / proto board for own circuits
  • all GPIO pins are marked and placed beside the breadboard area
  • 3x 2 way terminal blocks to connect external components to the breadboard
  • USB-A socket (option) to bring the internal usb of the Pizero outside the housing
  • removable protections for terminals
  • Opening for SD card on top side
  • for Raspberry Pi Zero, Zero W(H) and Banana Pi M2/BPI Zero



We offer the  Raspibox Open Plus kits in 2 different versions:

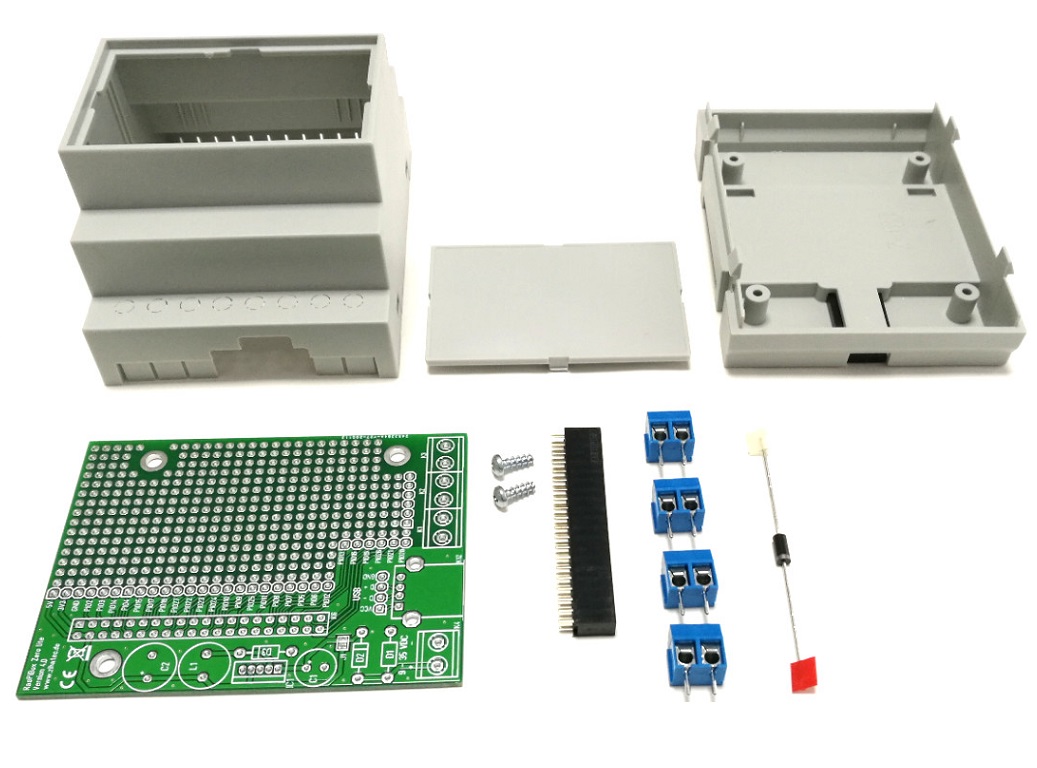

  •  Version Basic: without the parts of the voltage regulator. (You can order these parts seperately form any electronic distributor ...)

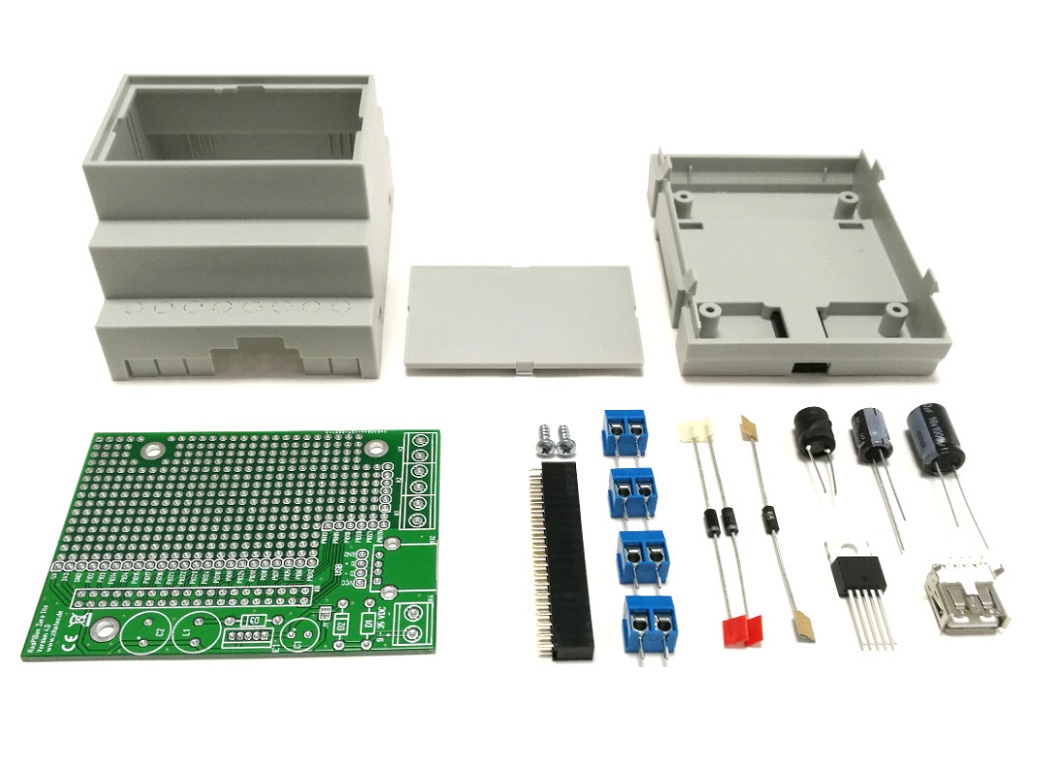

  • Version Standard: includes parts für a 5V/1.7A voltage regulator and USB-A socket





DIY kit for RasPiBox Zero:

You can order your RasPiBox Zero DIY kit in our web shop. This kit comes as a set of parts, a little soldering is required to put it together but its really easy, even a beginner can do it in 15-20 minutes or so.



These kits are also available at ThePiHut.com.

You may also like:


Downloads

Current Version 4.x:

Datasheet English
Version 4.x / 2020-01-31
Datasheet RasPiBox zero lite Rev B.pdf
Adobe Acrobat Document 2.1 MB
Assembly Instruction for Version 4.x - English
detailed assembly instruction for version 4.x of RasPiBox Zero pcb
Assembly Instruction RasPiBox Zero rev C
Adobe Acrobat Document 3.0 MB

Old Versions:

Datasheet English
Datasheet RasPiBox zero lite Rev A.pdf
Adobe Acrobat Document 261.6 KB
Assembly Instruction for Version 3.x - English
detailed assembly instruction for version 3.x of RasPiBox Zero pcb
Assembly Instruction RasPiBox Zero rev B
Adobe Acrobat Document 2.5 MB
Assembly Instruction for Version 2.x - English
detailed assembly instruction for older versions 2.x of RasPiBox Zero pcb
Assembly Instruction RasPiBox Zero rev A
Adobe Acrobat Document 1.4 MB
Application note: Integration of Z-Wave module
Integration of RaZberry Z-Wave module into RasPiBox Zero
Application Note RasPiBox ZWave Rev A.pd
Adobe Acrobat Document 223.3 KB
