AZ-Touch ESP

ESP8266 & ESP32 top wall mounting touchscreen set

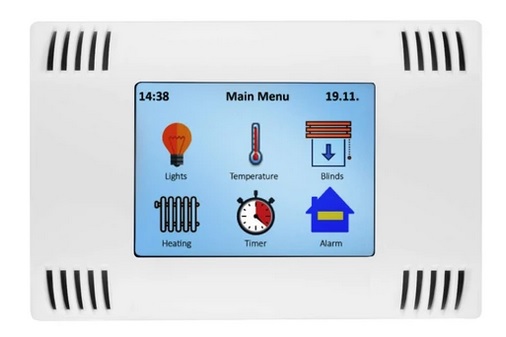

The popular ESP8266 and ESP32 based modules are used in many IoT applications like home automation, smart lighting, smart metering, remote control etc. You can find a lot of ready to use projects in the Internet. AZ-Touch is a touchscreen enclosure set especially for top wall mounting for the well-known Wemos D1 Mini boards based on  ESP8266 and the ESP32 DEV KIT C.

AZ-Touch comes in a nice enclosure for wall mounting together with a 2.4 inch or 2.8  inch resistive touch screen and enables you to mount your project permanent in your living room, corridor or other exposed places.



Touchscreen

2.4 or 2.8 inch touchscreen with integrated  ILI9341 display controller, communication via SPI. Touch controller Type XPT2046 and resitive touch.


Compatibility

AZ-Touch ESP can be used together with AZ-Delivery D1 Mini (ESP8266) and ESP32 DEV KIT C.

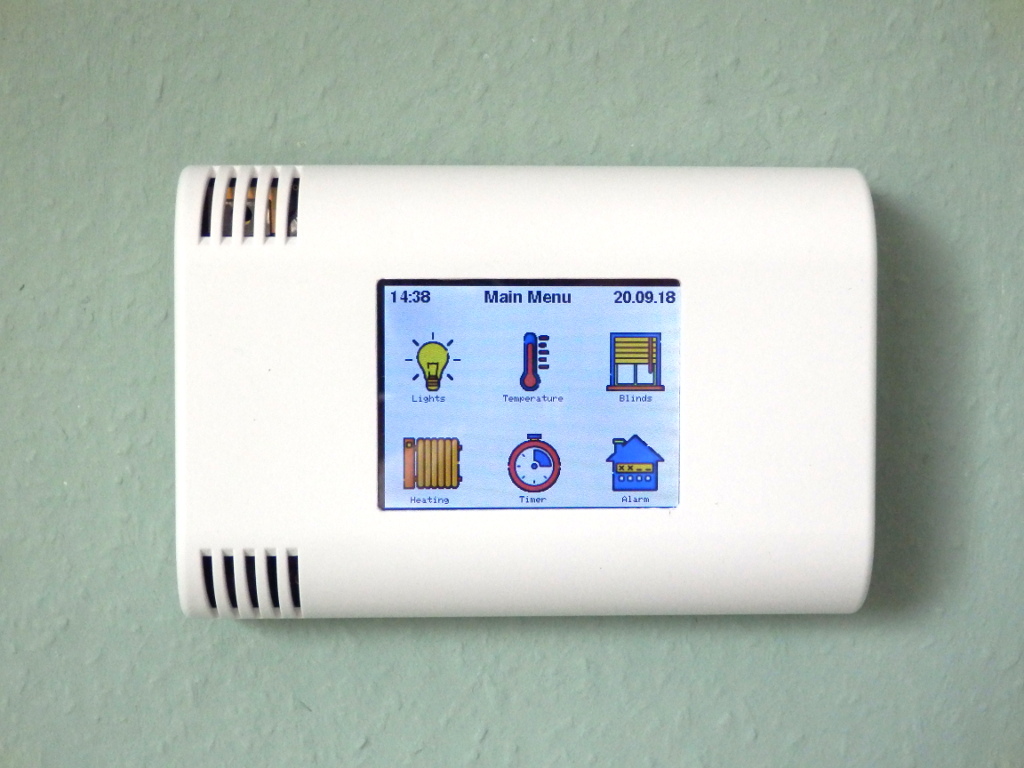

Vertical and horizontal mounting

Depending from your project and your software you can mount the enclosure set vertical or horizontal directely on the wall or in front of a flush wall mount box.

ESP32 ESP8266 Nodemcu touch ILI9341 homeautomation
ESP32 ESP8266 Nodemcu touch ILI9341 weather station

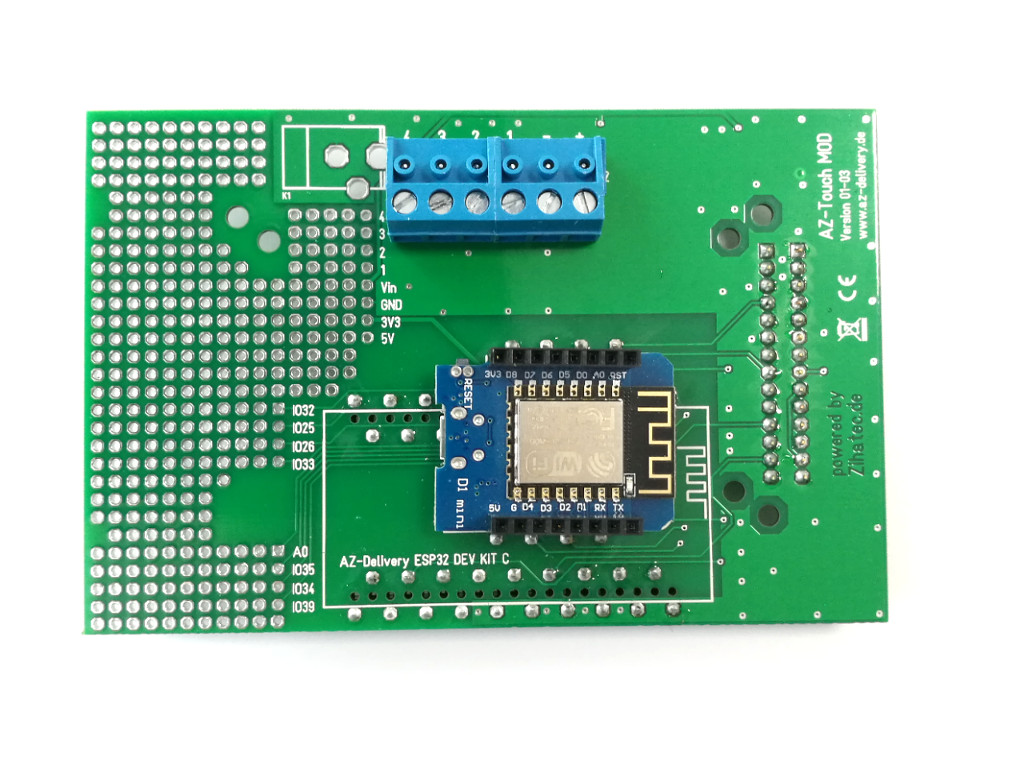

Easy connection

A removable terminal block makes installion easier. The pcbs are mounted on the enclosure allowing a rapid substitution of the devices when needed and facilitating the assembling/ disassembling of the enclosure.


Power Supply

The AZ-Touch pcb come with an integrated switching regulator for voltages from 9 to 35V DC. You can connect the power supply via the terminal or an optional DC socket.


Acoustics

The integrated piezo beeper (resonance frequency 4kHz)  can be used to generate acoustic feedback, acknowldge tones or melodies.

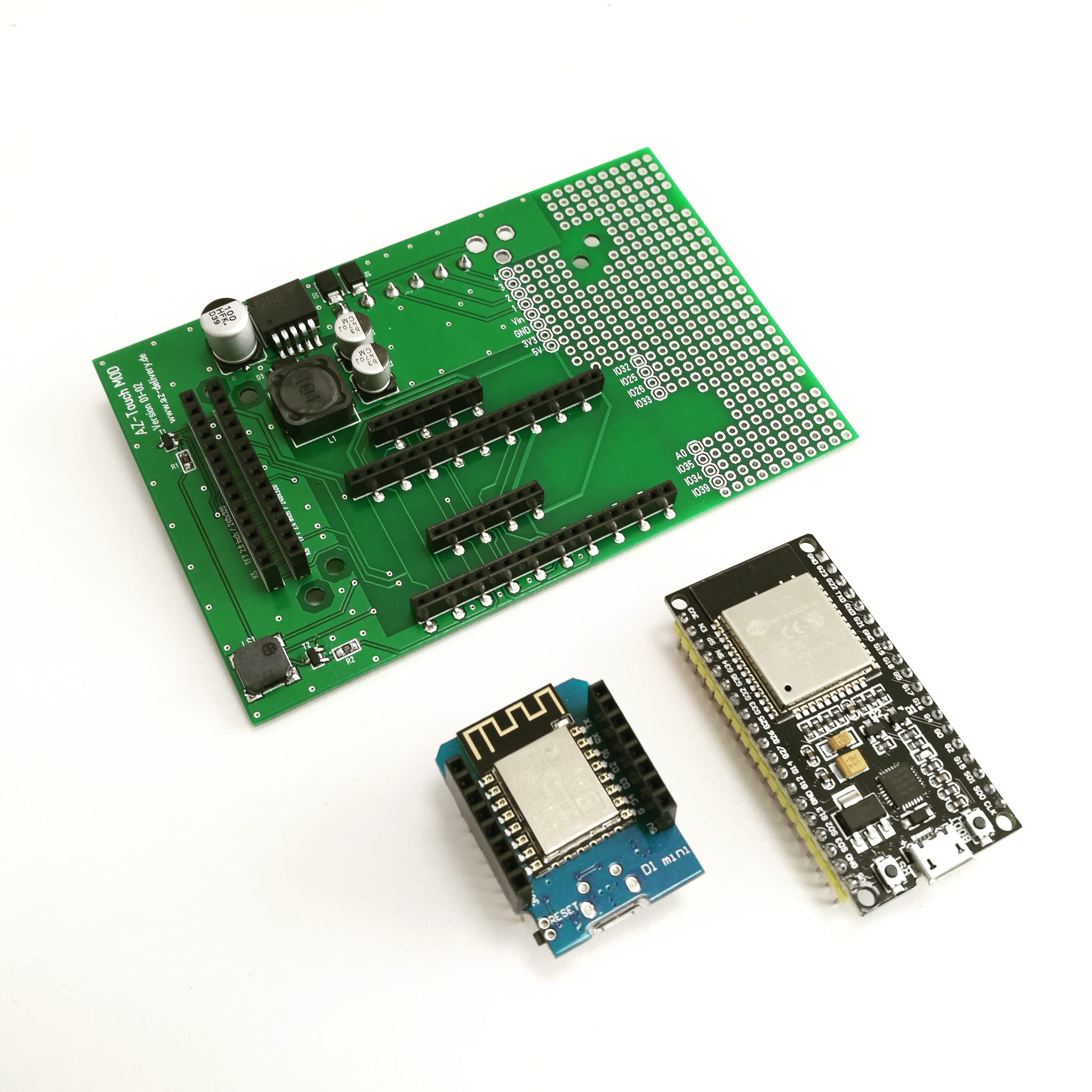

Own circuits

A small breadboard area in the top of the pcb can be used for own extensions. 4 poles of the terminal are connected together with some GPIOs and the voltages with solder joints beside the breadboard.


Webstore:

Downloads current version AZ-Touch MOD:

Datasheet AZ-Touch MOD Rev B
Datasheet AZ-Touch MOD Rev B.pdf
Adobe Acrobat Document 2.0 MB
Schematic AZ-Touch MOD
AZ-Touch MOD schematic V01-03-01.pdf
Adobe Acrobat Document 208.9 KB

Downloads older versions AZ-Touch / ArduiTouch ESP:

Datasheet AZ-Touch REV A
Datasheet Arduitouch ESP Rev A.pdf
Adobe Acrobat Document 2.9 MB
Construction Manual REV D
for pcb version 01-03-00
Assembly Instruction ArduiTouch ESP rev
Adobe Acrobat Document 7.8 MB
Schematic AZ-Touch V01-03
ArduiTouch ESP schematic V01-03-00.pdf
Adobe Acrobat Document 201.6 KB

Application Notes:

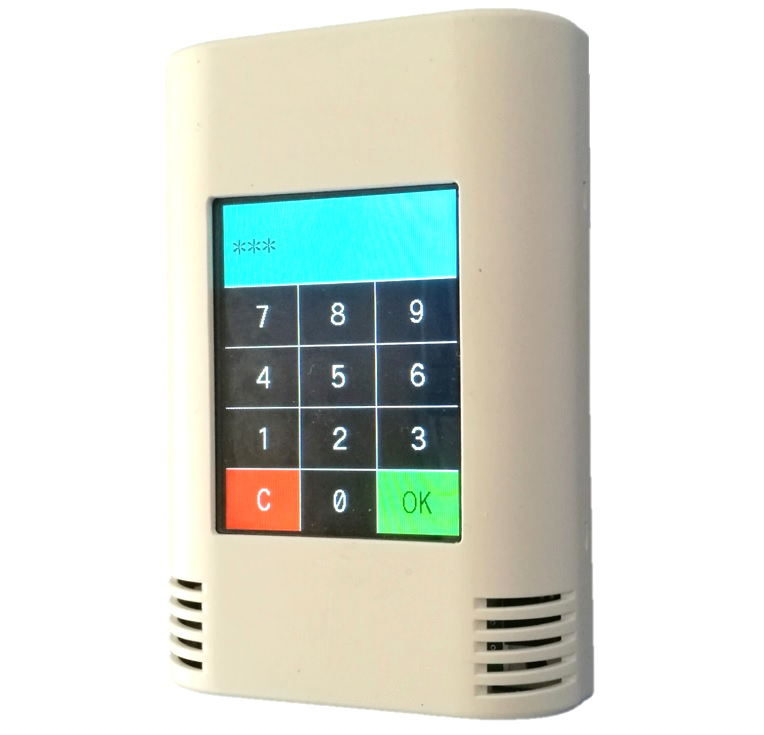

Simple Codelock

keypad
code lock
Application note codelock
Very simple codelock / keypad example
ArduiTouch ESP Codelock rev A.pdf
Adobe Acrobat Document 1.2 MB
Codelock Source code
for ESP8266 and ESP32
CodeLock_ESP.zip
Compressed Archive in ZIP Format 26.1 KB

Covid-19 Tracker

corona virus tracker for ESP32
Covid-19 tracker for AZ-Touch ESP32

This little tracker will help you to be up to date about the coronvavirus outbreak and the situation in your country. The display shows alternating the current data of different countries of your choice.



Source Code for ESP32

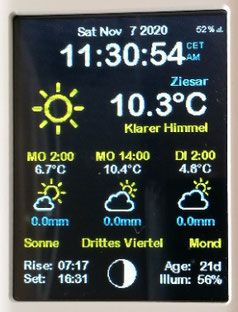

Weather forecast

ESP32 ESP8266 Nodemcu touch ILI9341 weather station
Weather Station
Weather Station Example
Application note weather station for ESP8266 and ESP32
AZ-Touch ESP Weather rev B.pdf
Adobe Acrobat Document 419.2 KB
Weather Station ESP8266
source code for ESP8266 based modules
esp8266-weather-station-color.zip
Compressed Archive in ZIP Format 853.7 KB

Weather Station ESP32
source code for ESP32 based modules
esp32-weather-station-color.zip
Compressed Archive in ZIP Format 58.5 KB

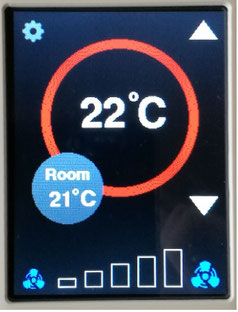

Thermostate with MODBUS

ESP32 ESP8266 Nodemcu touch ILI9341 thermostat modbus
Thermostat with MODBUS
Thermostat Example
Application note Thermostat with Modbus for ESP8266 (NodeMCU & Wemos D1 Mini)
ArduiTouch ESP8266 HVAC rev A.pdf
Adobe Acrobat Document 424.8 KB
Thermostat ESP8266
source code for ESP8266 based modules
Modbus_ESP8266.zip
Compressed Archive in ZIP Format 7.6 KB
Thermostat ESP32
source code for ESP32 based modules
Modbus_ESP32.zip
Compressed Archive in ZIP Format 7.7 KB

Social Media Tracker

ESP32 ESP8266 Nodemcu touch ILI9341 social media counter tracker
Social Media Counter
Social Tracker Example
Application note Social Tracker for Youtube, Facebook and Instagram
ArduiTouch ESP Social Tracker rev A.pdf
Adobe Acrobat Document 340.2 KB
Social Tracker ESP8266
source code for ESP8266 based modules
Social_Counter.zip
Compressed Archive in ZIP Format 49.1 KB
Social Tracker ESP32
source code for ESP32 based modules
Social_Counter_ESP32.zip
Compressed Archive in ZIP Format 48.3 KB

Video live picture

show video stream on ESP32 and ili9341
video surveillance with AZ-Touch

How to show an JPG picture of an IP camera in realtime on the AZ-Touch equipped with ESP32 DEV KIT

Source Code



RFID Reader

RFID RC522 AZ-Touch ArduiTouch ESP32
RFID access control with AZ-Touch

How to design a nice looking RFID reader with RC522 chip based on AZ-Touch and ESP32 DEV KIT C

Source Code

Homepoint - Smarthome

An ESP32 based Smarthome Controller for MQTT
Homepoint

Homepoint is a screen-based interface for MQTT-connected Smarthome devices by Matt Sieren that runs on the cheaply available ESP32 Chipset. This project requires a MQTT-Broker to be running in your smarthome.

Source Code

OhEzTouch - Smarthome with OpenHAB

OhEzTouch for OpenHAB
OhEzTouch for OpenHAB

OhEzTouch is a simple always-on touch control device for home automation systems driven by OpenHAB. The touch buttons and graphics are dynamically generated. The structure is defined by an individual OpenHAB sitemap on the server side.

Source Code

Smart Home Central
Smart Home Central

Smart Home central based on AZ-Touch for ESP32 and ESP8266 by Gerald Lechner
