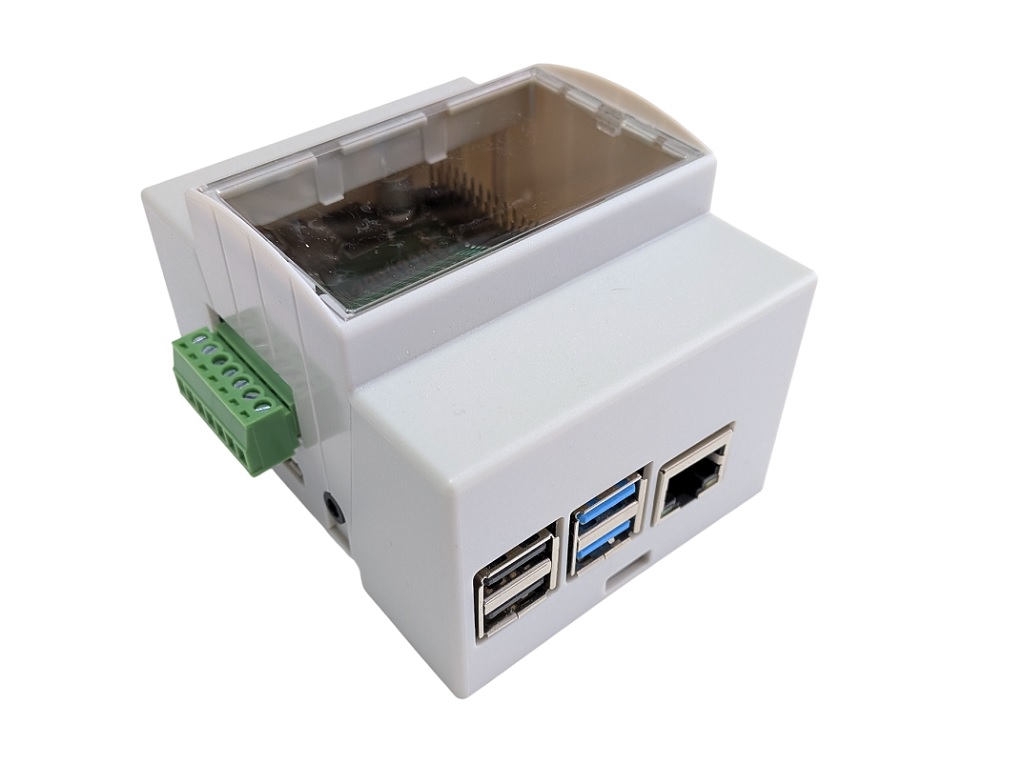

The RasPiBox Lite is a compact and cost-effective version of our popular RasPiBox DIN-rail enclosure series. As with previous versions, the enclosure includes a circuit board featuring a perfboard area for custom circuits and a voltage regulator that converts standard DC voltages found in control cabinets—such as 24V DC—into the 5V required by the Raspberry Pi.
Unlike its big brother, the RaspiBox Open V3, there is no slot for an additional HAT. The perfboard area is also smaller, and fewer terminal blocks are available for free use. A version with a gray front panel is also not offered. However, in the Pi5 version, an additional fan can be installed here as well.

Features:

• top-hat rail housing with 4 modules with transparent front only

• 40-pin socket connector (for plugging on Raspberry Pi)
• 7pole plugable screw terminals with 3.5 mm pitch (5 for free use)
• perfboard area for own circuits
• Pre-assembled circuit board - no soldering necessary
• important GPIOs of the Raspberry Pi are routed to labeled terminal strip
• Integrated switching regulator 5V/4A (input voltage 9 - 35V DC)
• Installation option for active cooler (Pi5 version only)
• ventilation slots (Pi5 version only)
• suitable for Raspberry Pi models 4 and 5
